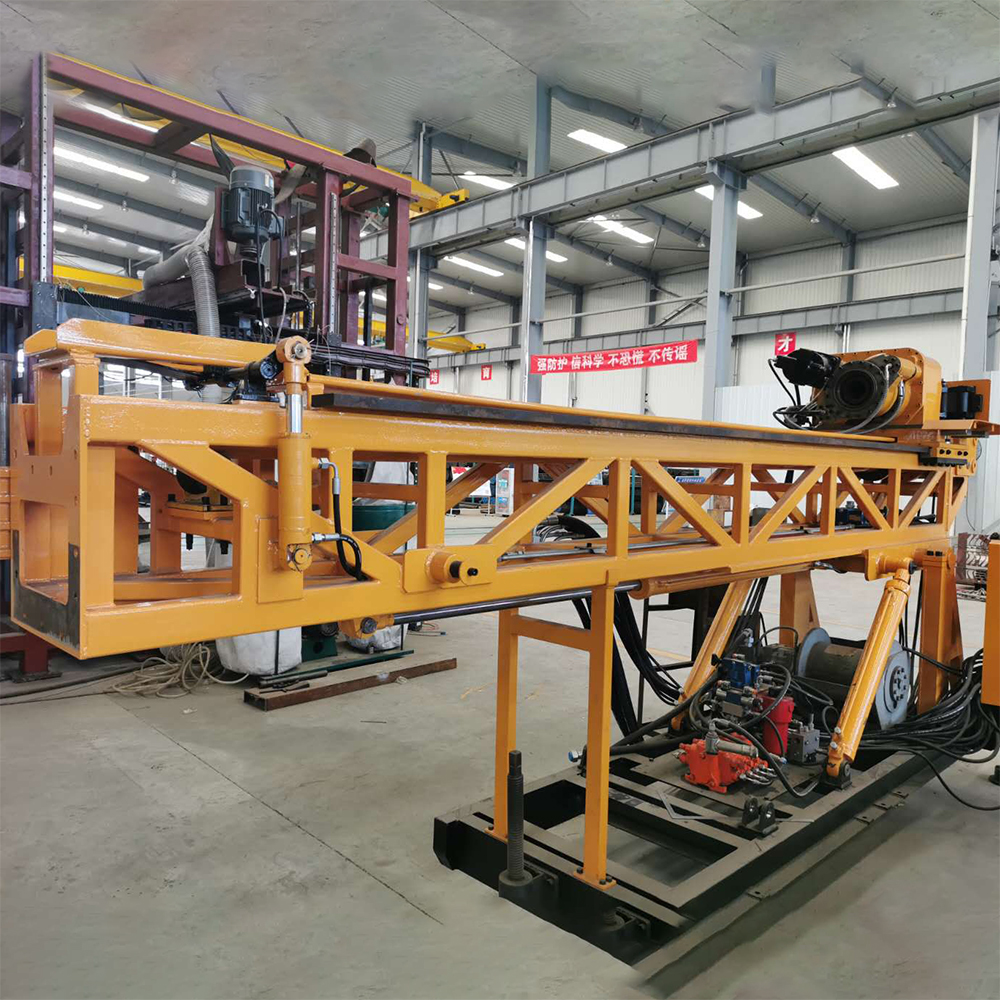

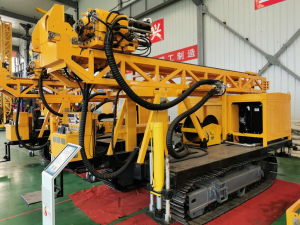

The SHY-5C full hydraulic core drilling rig adopts modular design, which designs the power and hydraulic station, console, power head, drill tower and chassis into relatively independent units, which is convenient for disassembly and minimizes the transportation weight of a single piece. It is especially suitable for site relocation under complex road conditions such as plateau and mountainous areas. The SHY-5C full hydraulic core drilling rig is suitable for diamond rope coring, percussive rotary drilling, directional drilling, reverse circulation continuous coring and other drilling techniques; It can also be used for water well drilling, anchor drilling and engineering geological drilling. It is a new type of full hydraulic power head core drill.

Send Inquiry

Product Description

Model		SHY-5C
Diesel Engine	Power	145kw
Drilling Capacity	BQ	1500m
	NQ	1300m
	HQ	1000m
	PQ	680m
Rotator Capacity	RPM	0-1100rpm
	Max. Torque	4600Nm
	Max. Lifting Capacity	15000kg
	Max. Feeding Power	7500kg
Foot Clamp	Clamping Diameter	55.5-117.5mm
Main hoister lifting force (Single rope)		7700kg
Wire hoister lifting force		1200kg
Mast	Drilling Angle	45°-90°
	Feeding Stroke	3200mm
	Slippage Stroke	950mm
Other	Weight	7000kg
Other	Transport Way	Trailer

Key Features & Capabilities

Modular design, can be disassembled for transportation, and the maximum weight of a single piece is 500kg / 760kg, which is convenient for manual handling.
The SHY-5C full hydraulic core drilling rig can match the two power modules of diesel engine and motor. Even on the construction site, the two power modules can be exchanged quickly and easily.
Full hydraulic transmission realizes the integration of mechanical, electrical and hydraulic, with stable transmission, light noise, centralized operation, convenience, labor saving, safety and reliability.

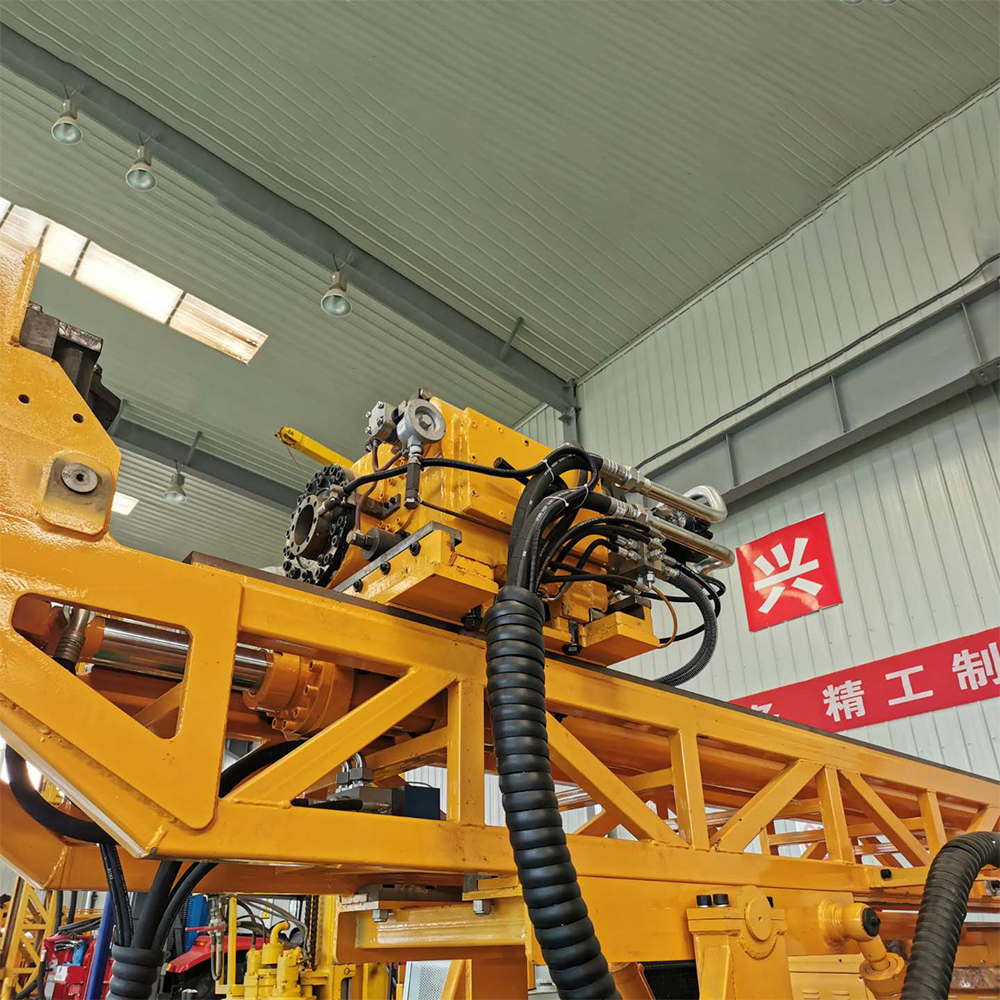

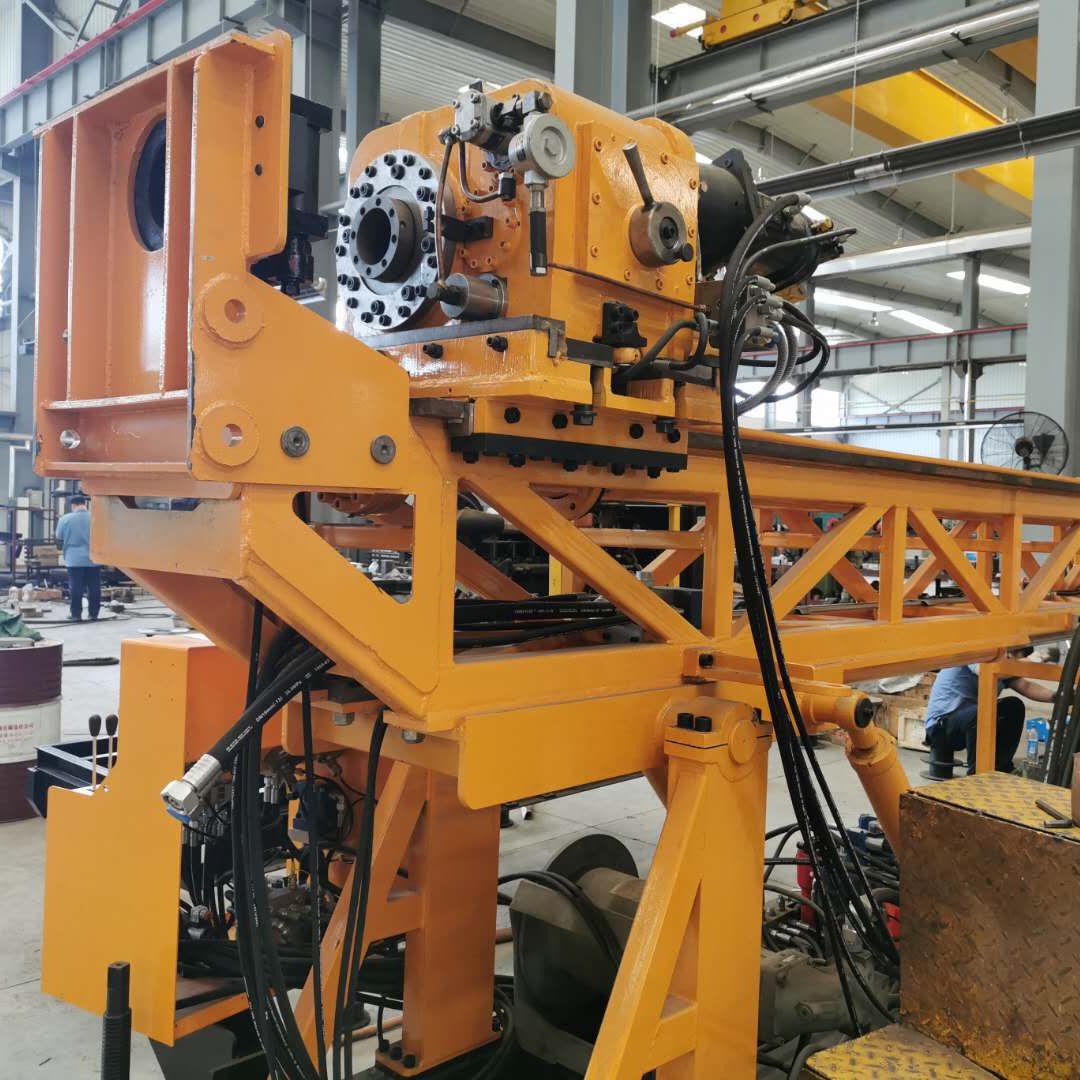

The power head gearbox has stepless speed regulation, wide speed range and 2-gear / 3-gear torque output, which can be applicable to the requirements of various drilling processes for speed and torque in different drilling diameters. The power head can be shifted laterally to give way to the orifice, which is convenient and labor-saving.
Equipped with hydraulic chuck and hydraulic gripper, the drill pipe can be clamped quickly and reliably with good alignment. The slip can be replaced for clamping Φ 55.5, Φ 71, Φ 89 various specifications of rope coring drill pipe, large drift diameter and easy to use.
The drilling distance of SHY-5C full hydraulic core drilling rig is up to 3.5m, which can effectively reduce the auxiliary working time, improve the drilling efficiency and reduce the core blockage caused by stopping and reversing the rod.
It is equipped with imported winch, stepless speed regulation, and the maximum single rope lifting force is 6.3t/13.1t.
Stepless speed regulation rope coring hydraulic winch with wide speed change range and flexible operation; Mast derrick can lift drilling tools 3-6M at a time, which is safe and labor-saving.
It is equipped with all the essential gauges, including: Rotation speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque gauge, Water pressure gauge.
SHY-5C Full Hydraulic Core Drilling Rig is suited for the following drilling applications:
- Diamond core drilling
- Directional drilling
- Reverse circulation continuous coring
- Percussion rotary
- Geo-tech
- Water bores
- Anchorage

The SHY-5C full hydraulic core drilling rig is suitable for diamond rope coring, percussive rotary drilling, directional drilling, reverse circulation continuous coring and other drilling techniques; It can also be used for water well drilling, anchor drilling and engineering geological drilling. It is a new type of full hydraulic power head core drill.

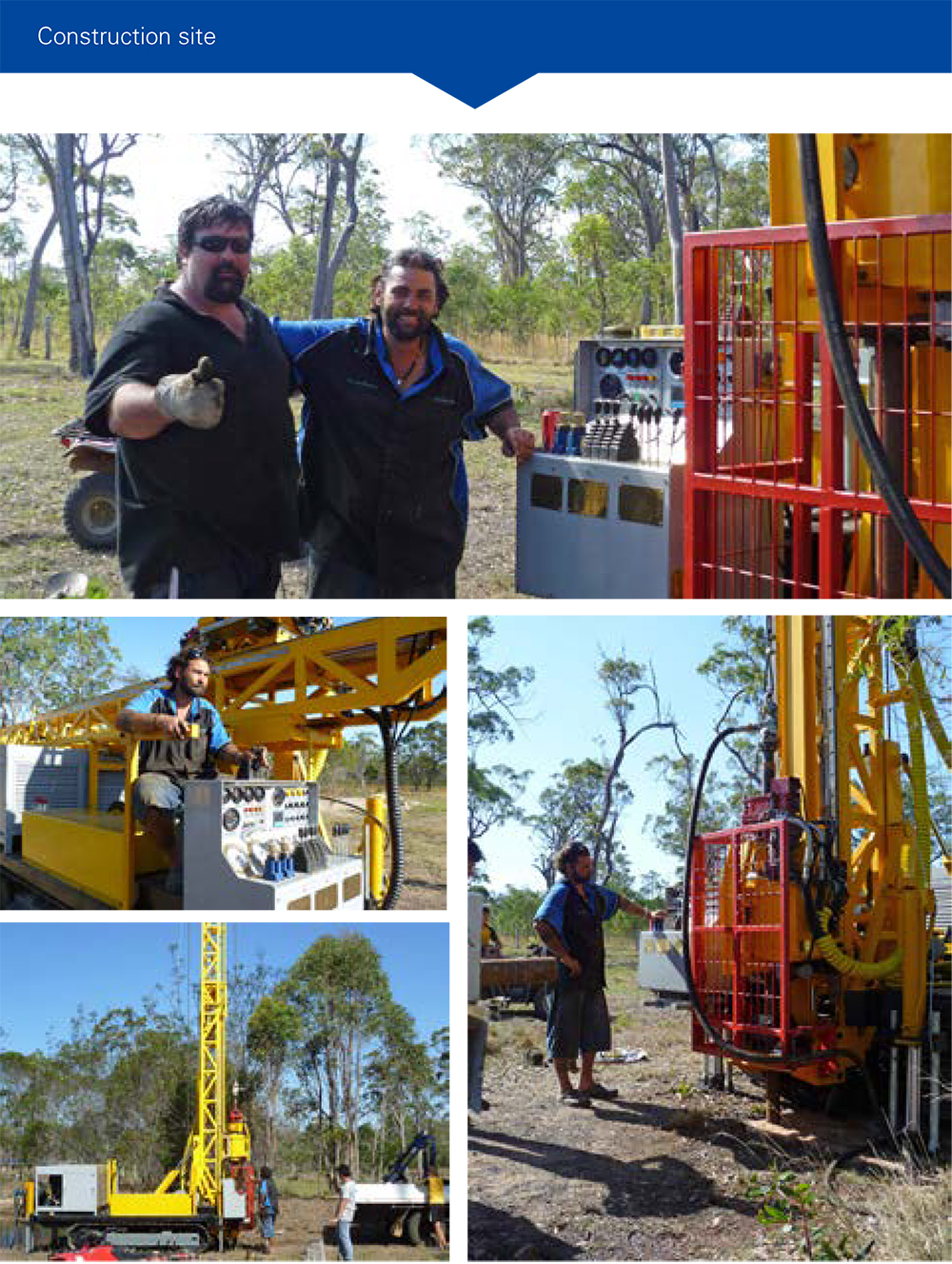

SHY-5C Drilling Rig Worksite Application

Frequently Asked Questions (FAQ)

Q1: What is the maximum drilling capacity of the SHY-5C drilling rig?

A1: The SHY-5C rig supports drilling capacities of up to 1500m for BQ, 1300m for NQ, 1000m for HQ, and 680m for PQ drilling configurations.

Q2: How does the modular design benefit site relocation?

A2: The modular design divides the rig into independent units (power station, console, mast, etc.). With a maximum single-piece weight of just 500kg to 760kg, it is highly convenient for manual handling and transport in mountainous or high-plateau areas.

Q3: Can the power modules be interchanged?

A3: Yes. The SHY-5C rig accommodates both diesel engine (145kw) and electric motor power modules, allowing for fast and convenient exchange directly on the construction site.

Q4: What drilling techniques is this rig compatible with?

A4: It is designed for diamond core drilling, directional drilling, reverse circulation continuous coring, percussion rotary, geotechnical investigation, water well boring, and anchorage applications.

Q5: What are the key rotation and lifting limits?

A5: The rotator features a speed range of 0-1100rpm and a maximum torque of 4600Nm. The main hoister provides a single-rope lifting force of 7700kg, and the secondary wire hoister provides 1200kg.

Q6: What instruments are included on the control panel?
