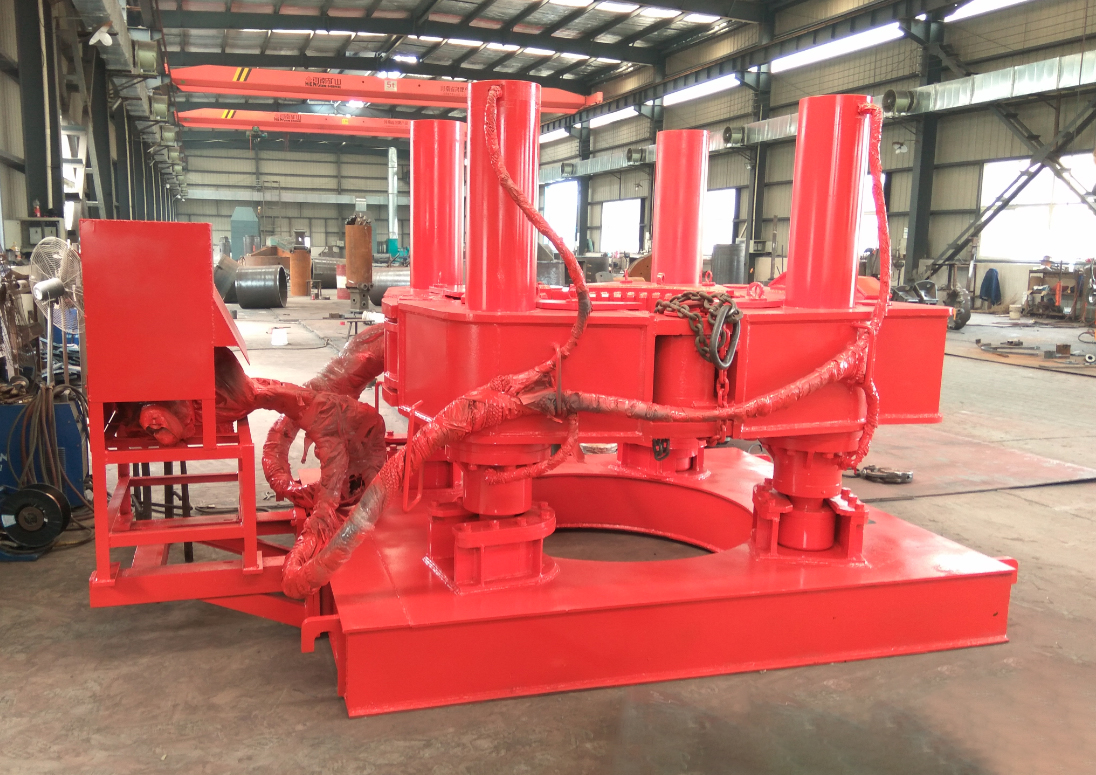

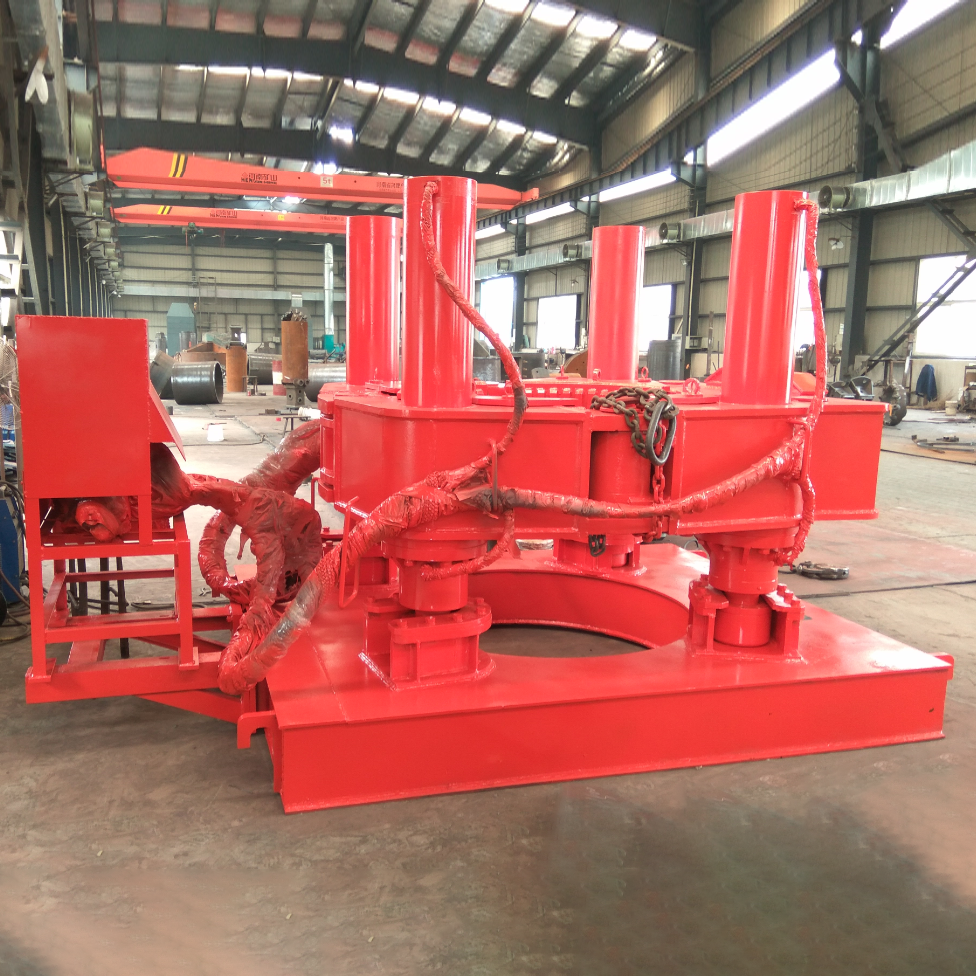

The B1500 full hydraulic extractor is designed for pulling casings and drill pipes efficiently in complex drilling operations. To accommodate varying project requirements, the circular fixture teeth can be customized according to the steel pipe diameter.
1
Independent Design
2
Double Oil Cylinder
3
Remote Control System
4
Integrated Pulling

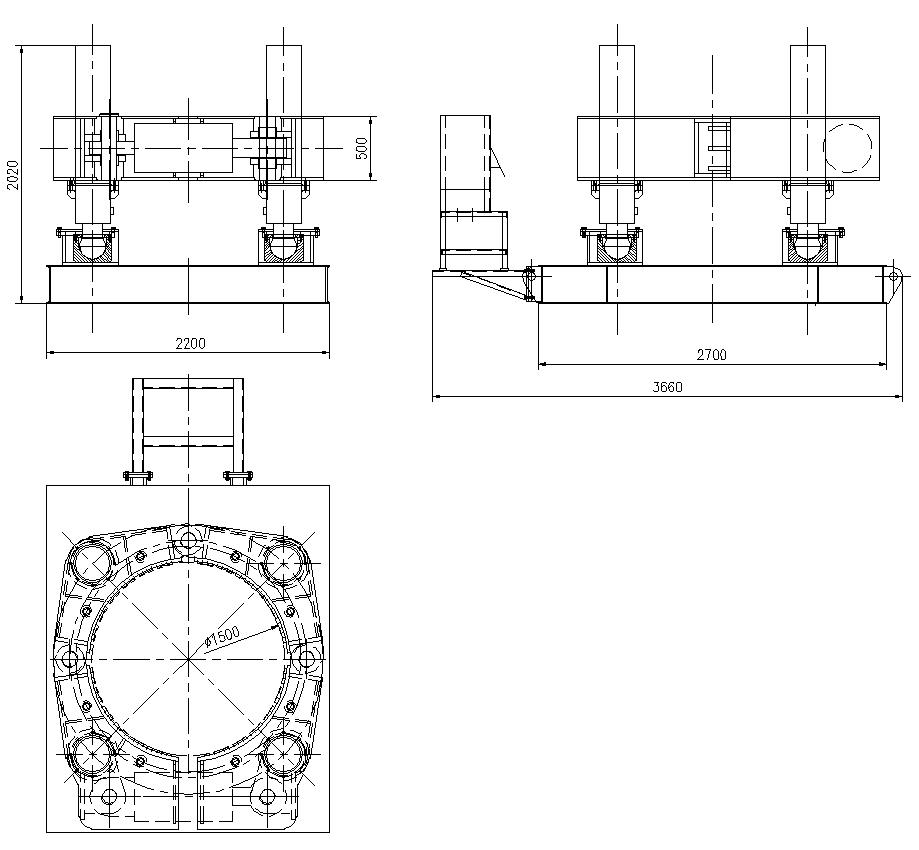

B1500 Extractor Specifications
| Parameter |
Specification |
| Model |
B1500 |
| Casing extractor diameter |
1500mm |
| System pressure |
30MPa (max.) |
| Working pressure |
30MPa |
| Four jack stroke |
1000mm |
| Clamping cylinder stroke |
300mm |
| Pull force |
500 ton |
| Clamp force |
200 ton |
| Total weight |
8 ton |
| Oversize |
3700 x 2200 x 2100 mm |
| Power pack |
Motor power station |
| Rate power |
45kw / 1500 rpm |
Motor Power Station Specifications (Type A)
| Item |
Unit |
Motor Power Station Details |
| Engine |
— |
Three-phase asynchronous motor |
| Power |
Kw |
45 |
| Rotation speed |
rpm |
1500 |
| Fuel delivery |
L/min |
150 |
| Working pressure |
Bar |
300 |
| Tank capacity |
L |
850 |
| Overall dimension |
mm |
1850 * 1350 * 1150 |
| Weight (excluding hydraulic oil) |
Kg |
1200 |

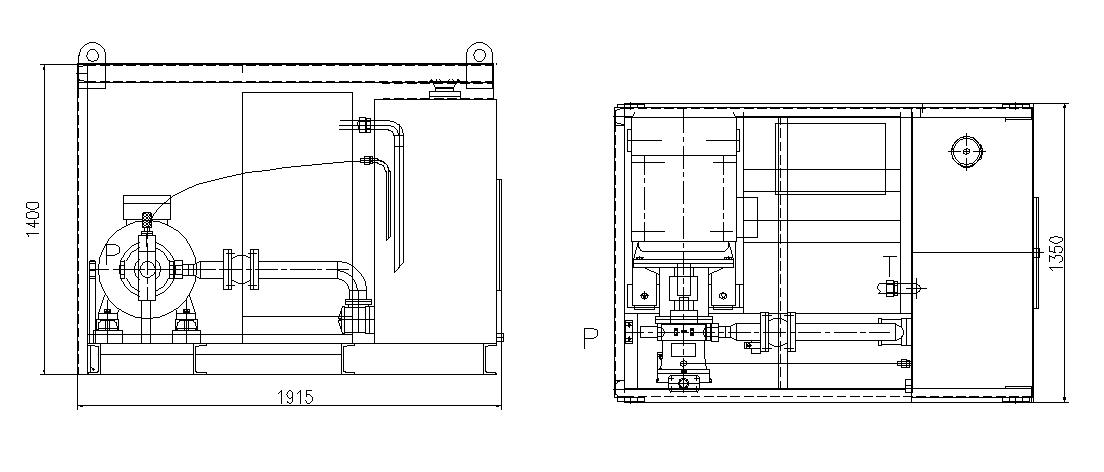

Motor Power Station Specifications (Type B)
| Item |
Unit |
Motor Power Station Details |
| Engine |
— |
Three-phase asynchronous motor |
| Power |
Kw |
45 |
| Rotation speed |
rpm |
1500 |
| Fuel delivery |
L/min |
150 |
| Working pressure |
Mpa |
25 |
| Tank capacity |
L |
850 |
| Overall dimension |
mm |
1920 * 1400 * 1500 |
| Weight (excluding hydraulic oil) |
Kg |
1500 |
Frequently Asked Questions
1. What is the primary function of the B1500 full hydraulic extractor?
The B1500 full hydraulic extractor is primarily designed and used for pulling casings and drill pipes during drilling and foundation construction operations.
2. Can the extractor handle different steel pipe sizes?
Yes. The circular fixture teeth can be fully customized according to the specific size of the steel pipe to ensure a secure grip and efficient pulling operation.
3. What are the main design characteristics of the B1500?
The B1500 features an independent design, double oil cylinders, remote control system compatibility, and support for integrated pulling.
4. What are the maximum pulling and clamping forces of the B1500?
The B1500 extractor offers a powerful pull force of up to 500 tons and a clamping force of up to 200 tons.
5. What motor power station configurations are available?
There are two configurations available, both driven by 45kW three-phase asynchronous motors at 1500 rpm. One configuration provides a working pressure of 300 Bar (weighing 1200 kg), while the other provides a working pressure of 25 MPa (weighing 1500 kg).
