Famous B1200 Full Hydraulic Casing Extractor Manufacturer, Exporter
Although the hydraulic extractor is small in volume and light in weight, it can easily, steadily and safely pull out the pipes of different materials and diameters such as condenser, rewaterer and oil cooler without vibration, impact and noise.

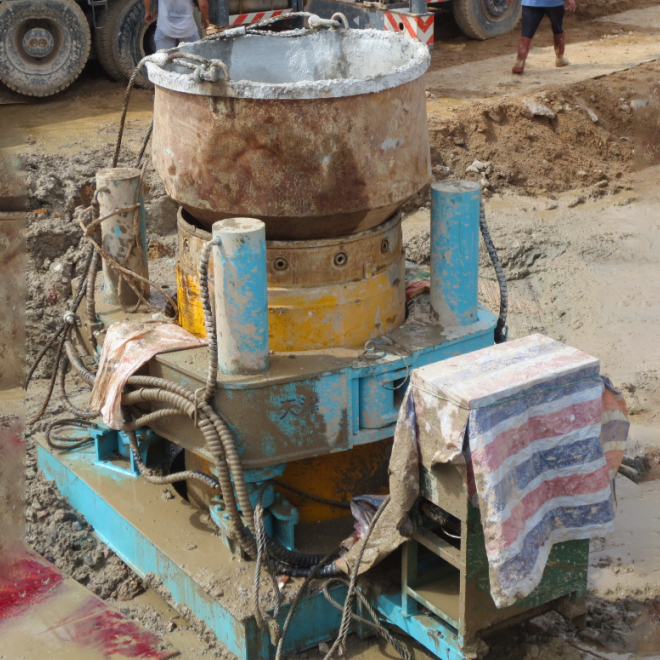

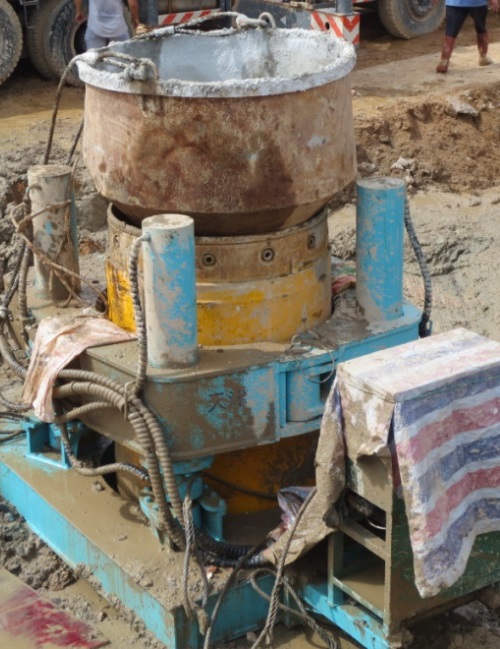

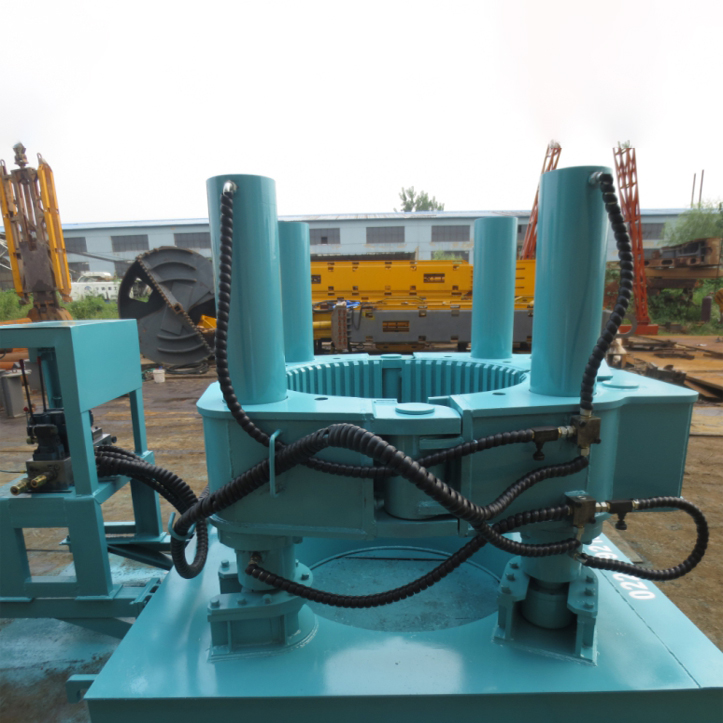

The B1200 full hydraulic extractor is used for pulling the casing and drill pipe.
Although the hydraulic extractor is small in volume and light in weight, it can easily, steadily and safely pull out the pipes of different materials and diameters such as condenser, rewaterer and oil cooler without vibration, impact and noise. It can replace the old time-consuming, laborious and unsafe methods.

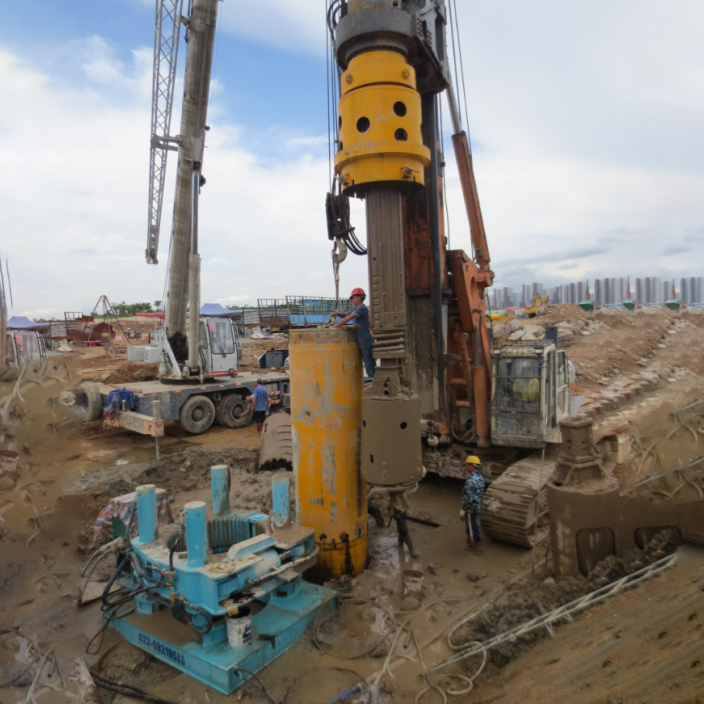

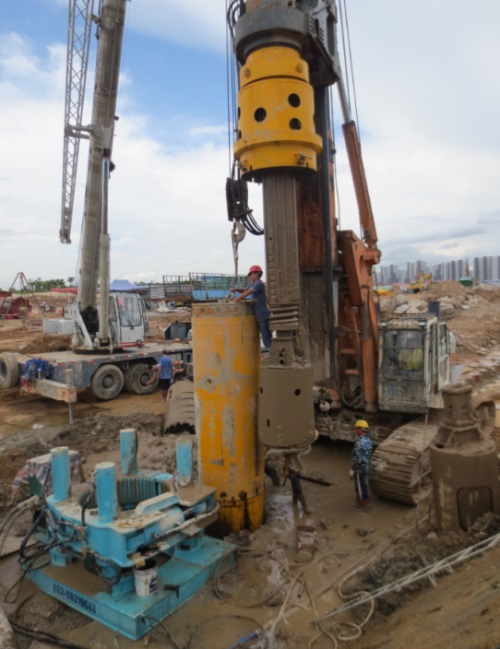

The B1200 full hydraulic extractor is the auxiliary equipment for drilling rigs in various geotechnical drilling projects. It is suitable for cast-in-place pile, rotary jet drilling, anchor hole and other projects with pipe following drilling technology, and is used for pulling out drilling casing and drill pipe.

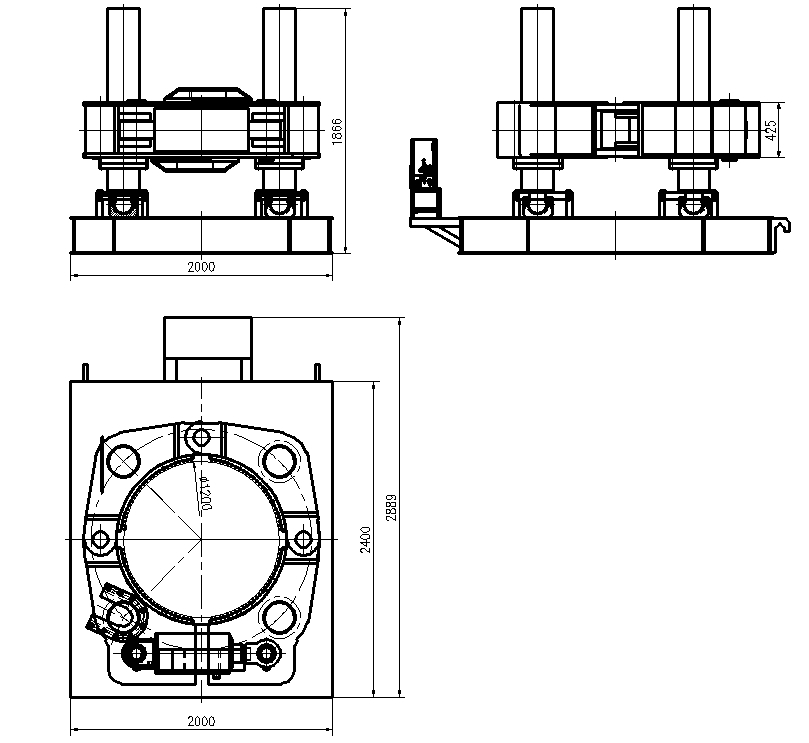

Technical Specifications
Parameter
Specification
Model
B1200
Casing extractor diameter
1200mm
System pressure
30MPa(max.)
Working pressure
30MPa
Four jack stroke
1000mm
Clamping cylinder stroke
300mm
Pull force
320ton
Clamp force
120ton
Total weight
6.1ton
Oversize
3000x2200x2000mm
Power pack
Motor power station
Rate power
45kw/1500

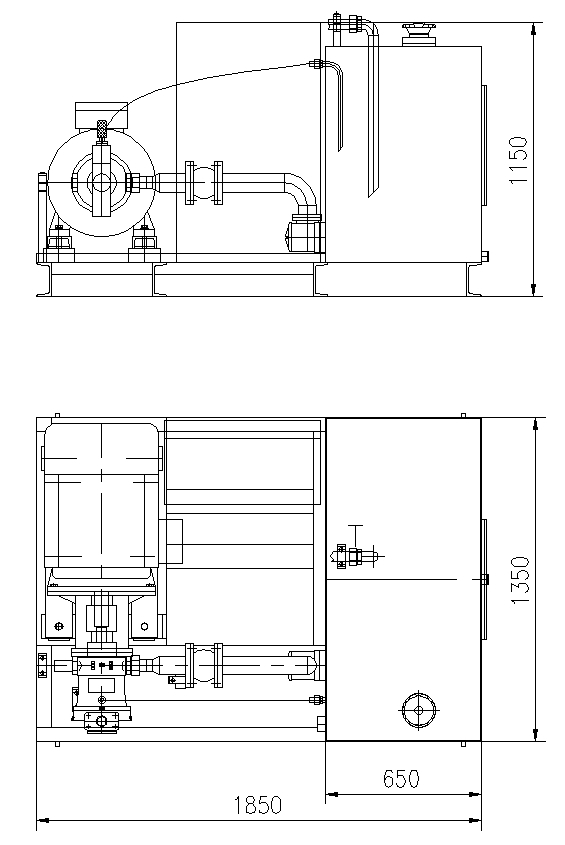

Motor Power Station Specifications
Item
Unit
Specifications
Engine
-
Three-phase asynchronous motor
Power
Kw
45
Rotation speed
rpm
1500
Fuel delivery
L/min
150
Working pressure
Bar
300
Tank capacity
L
850
Overall dimension
mm
1850*1350*1150
Weight (excluding hydraulic oil)
Kg
1200
Frequently Asked Questions (FAQ)
What is the primary application of the B1200 hydraulic extractor?
The B1200 full hydraulic extractor is primarily designed for pulling casing and drill pipes. It serves as auxiliary equipment for drilling rigs in various geotechnical drilling projects, such as cast-in-place piles, rotary jet drilling, and anchor holes.
What are the key pulling and clamping capacities of this model?
The B1200 full hydraulic extractor features a powerful pull force of 320 tons and a clamp force of 120 tons, allowing it to manage heavy-duty drilling applications efficiently.
What casing diameters is the B1200 extractor suitable for?
It is specifically designed to accommodate a casing extractor diameter of up to 1200 mm.
What makes the hydraulic extractor safer and more efficient than traditional methods?
Unlike old, labor-intensive methods, the B1200 operates easily, steadily, and safely. It performs extraction tasks without producing vibration, impact, or loud noise, making the worksite significantly safer and more productive.
What type of engine powers the motor power station?
The motor power station features a Three-phase asynchronous motor with a power rating of 45 kW and a rotation speed of 1500 rpm.
What is the total weight and footprint of the B1200 system?
The extractor itself has a total weight of 6.1 tons with dimensions of 3000x2200x2000mm. The accompanying motor power station weighs 1200 kg (excluding hydraulic oil) with dimensions of 1850x1350x1150mm.
