| Fundamental parameters | Drilling depth | Ф56mm (BQ) | 2500m |
| Ф71mm (NQ) | 2000m | ||
| Ф89mm (HQ) | 1400m | ||
| Drilling angle | 60°-90° | ||
| Overall dimension | 9500*2240*2900mm | ||
| Total weight | 16000kg | ||
| Hydraulic driving head Using hydraulic piston motor and mechanical gear style (Choose AV6-160 hydraulic motor) | Torque | 1120-448rpm | 682-1705Nm |
| 448-179rpm | 1705-4263Nm | ||
| Hydraulic driving head feeding distance | 3500mm | ||
| Hydraulic driving head feeding system (single hydraulic cylinder driving) | Lifting force | 200KN | |
| Feeding force | 68KN | ||
| Lifting speed | 0-2.7m/min | ||
| Rapid lifting speed | 35m/min | ||
| Feeding speed | 0-8m/min | ||
| Rapid feeding high speed | 35m/min | ||
| Mast displacement system | Mast move distance | 1000mm | |
| Cylinder lifting force | 100KN | ||
| Cylinder feeding force | 70KN | ||
| Clamp machine system | Range of the clamping | 50-200mm | |
| Clamping force | 120KN | ||
| Unscrew machine system | Unscrew torque | 8000Nm | |
| Main winch | Lifting speed | 33,69m/min | |
| Lifting force single rope | 150,80KN | ||
| Diameter of rope | 22mm | ||
| Cable length | 30m | ||
| Secondary winch | Lifting speed | 135m/min | |
| Lifting force single rope | 20KN | ||
| Diameter of rope | 5mm | ||
| Cable length | 2000m | ||
| Mud pump | Model | BW-350/13 | |
| Flow rate | 350,235,188,134L/min | ||
| Pressure | 7,9,11,13MPa | ||
| Engine (diesel Cummins) | Model | 6CTA8.3-C260 | |
| Power/speed | 194KW/2200rpm | ||
| Crawler | Wide | 2400mm | |
| Max. transit sloping angle | 30° | ||
| Max. loading | 20t | ||
High Torque Capacity: Max torque of SD2000 hydraulic crawler core drilling rig is 4263Nm, satisfying diverse project construction and drilling processes.
Optimized High-Speed Torque: Max speed is 1120 rpm with torque 680Nm. High torque at high speed makes it highly suitable for deep-hole drilling.
Piston Hydraulic Drive: The feeding and lifting system uses the piston hydraulic cylinder to drive the rotation head directly with a long travel and high lifting force.
Enhanced Efficiency: High lifting speed saves auxiliary time and simplifies hole washing during full driving operations, boosting overall productivity.

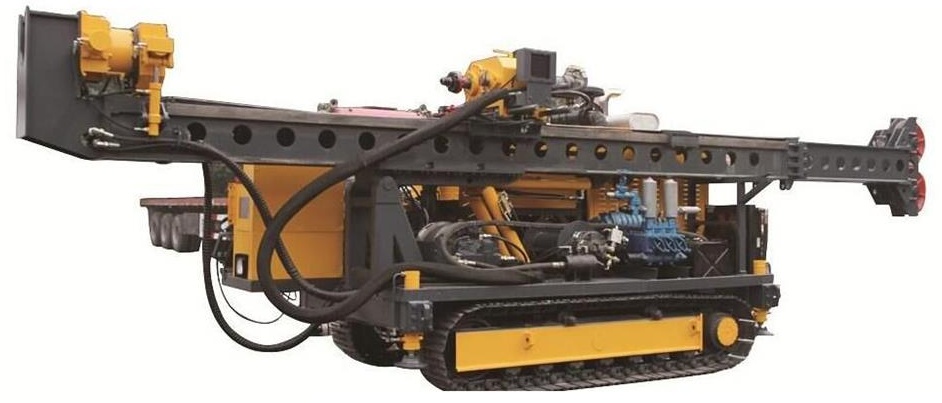

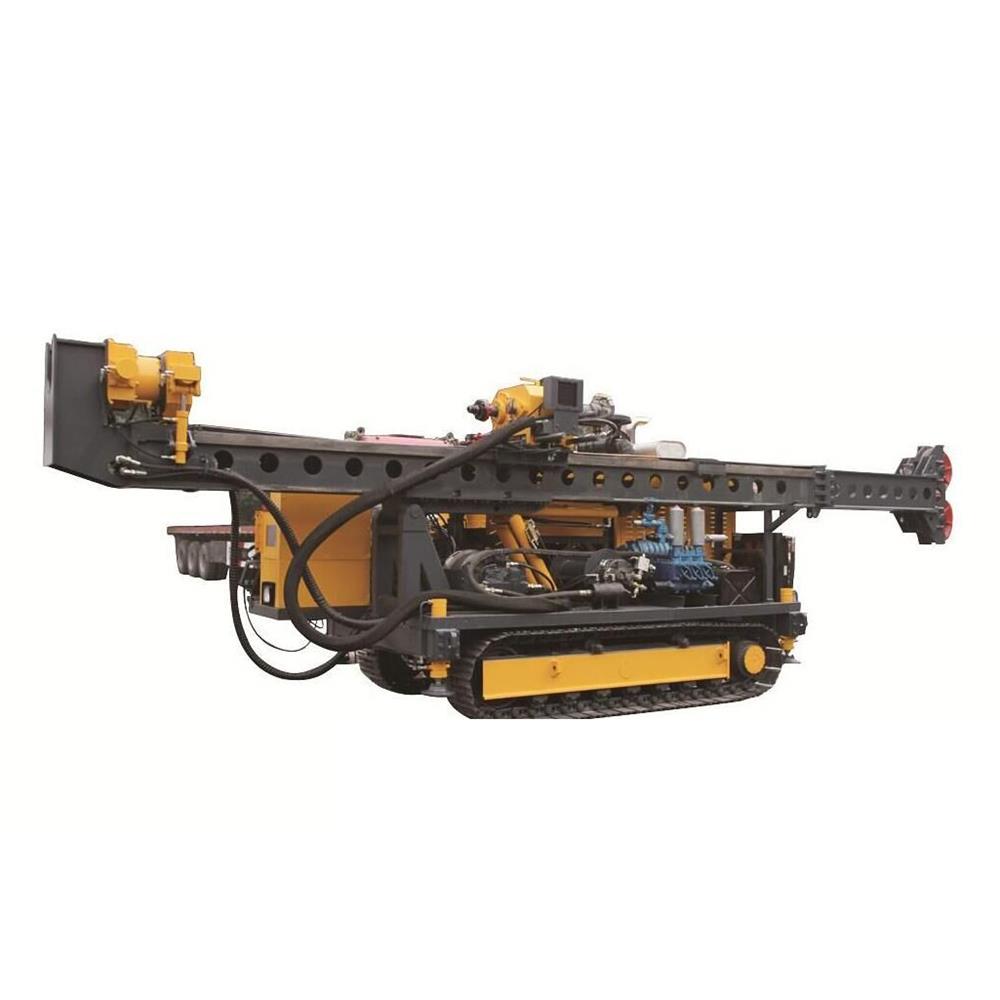

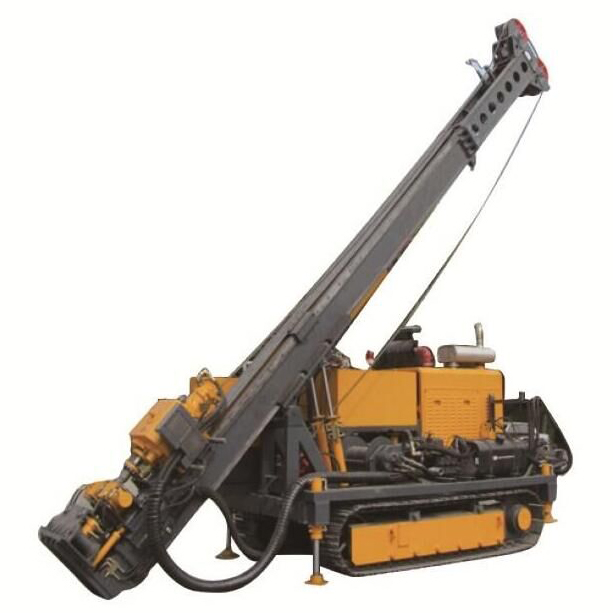

SD-2000 full hydraulic crawler driving core drilling rig is mainly used for diamond bit drilling with wire line. Because of the use of foreign advanced technology, especially the mature rotation head unit, clamp machine, winch and hydraulic systems, the drilling rig is widely used. It is not only applicable to the diamond and carbide drilling of solid bed, but also to seismic geophysical exploration, engineering geological investigation, micro-pile hole drilling, and construction of small/medium wells.
Imported Main Winch: Utilizes reliable lifting with NQ2000M single rope capacity. The wire line winch reaches max speeds of 205m/min at empty drum, minimizing auxiliary downtime.
Integrated Clamp & Unscrew Machine: Features quick clamp and unscrew mechanisms to facilitate easy disassembly of the drilling rod, successfully reducing physical labor intensity.
Back Pressure-Balancing: The advanced feeding system enables users to easily monitor drilling pressure at the bottom of the hole, extending drill bit working life.
Hydraulic Control: The mud pump and mud mixing machines are hydraulically controlled. Integrated operation ensures swift handling of incidents at the bottom of the hole.
Linear Controlled Crawler: Movement is safely controlled. The unit can climb onto flat trucks independently, reducing logistics and setup costs while offering high reliability.
