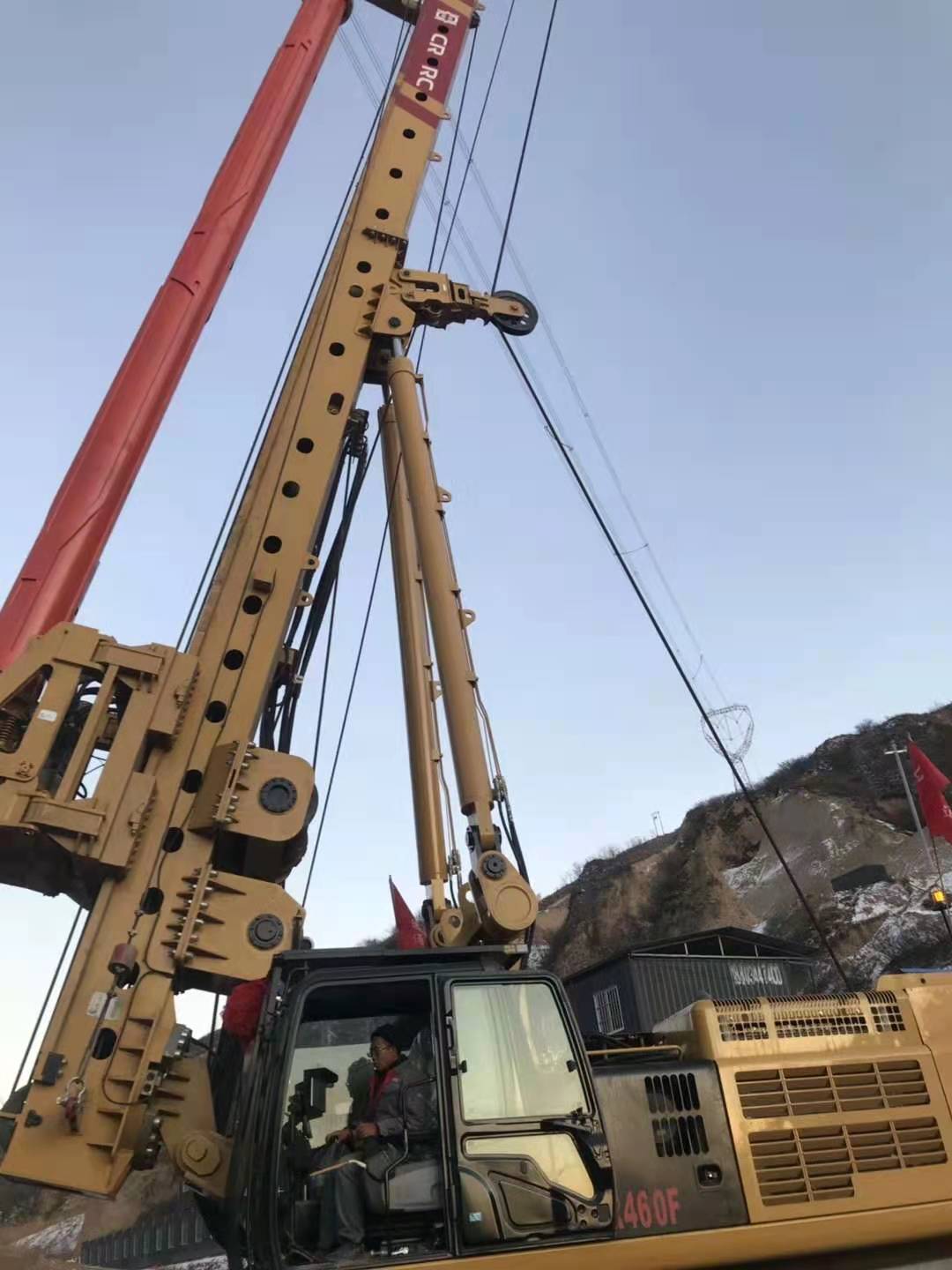

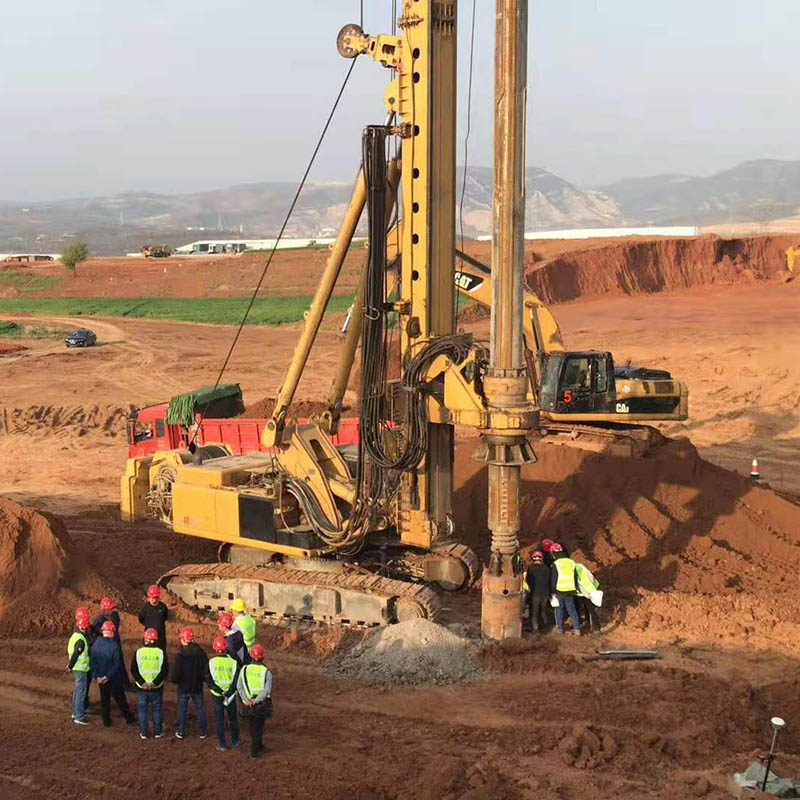

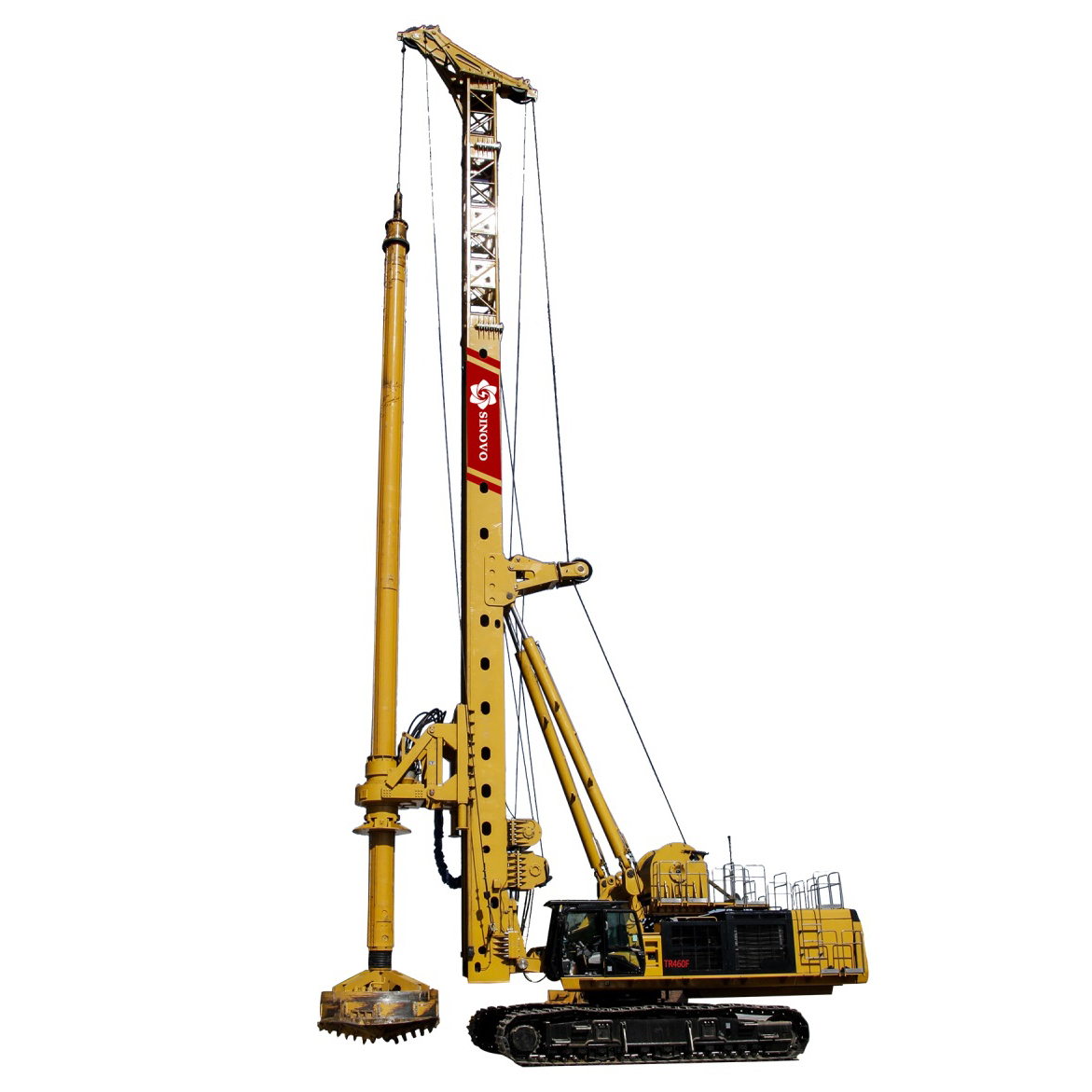

TR460 Rotary Drilling Rig is a large pile machine. Currently, the large tonnage rotary drilling rig is widely used by customers in complex geology areas. What's more, large and deep hole piles are required in across-sea and across-river bridge projects. Thus, based on these needs, we researched and developed the TR460 rotary drilling rig, which has the advantages of high stability, suitability for large and deep piles, and ease of transportation.
Triangle support structure reduces turning radius and increases the overall stability of the rotary drilling rig.
Rear-mounted main winch uses double motors, double reducers, and a single-layer drum design which avoids rope winding.
Crowd winch system is adopted with a stroke of 9m. Both crowd force & stroke are larger than those of the cylinder system, making it easy to embed casing. The optimized hydraulic and electrical control system improves control accuracy and reaction speed.
Authorized utility model patent of depth measuring device improves the accuracy of depth measurement.
Unique design of one machine with double working conditions can meet the requirements of large piles and rock drilling.

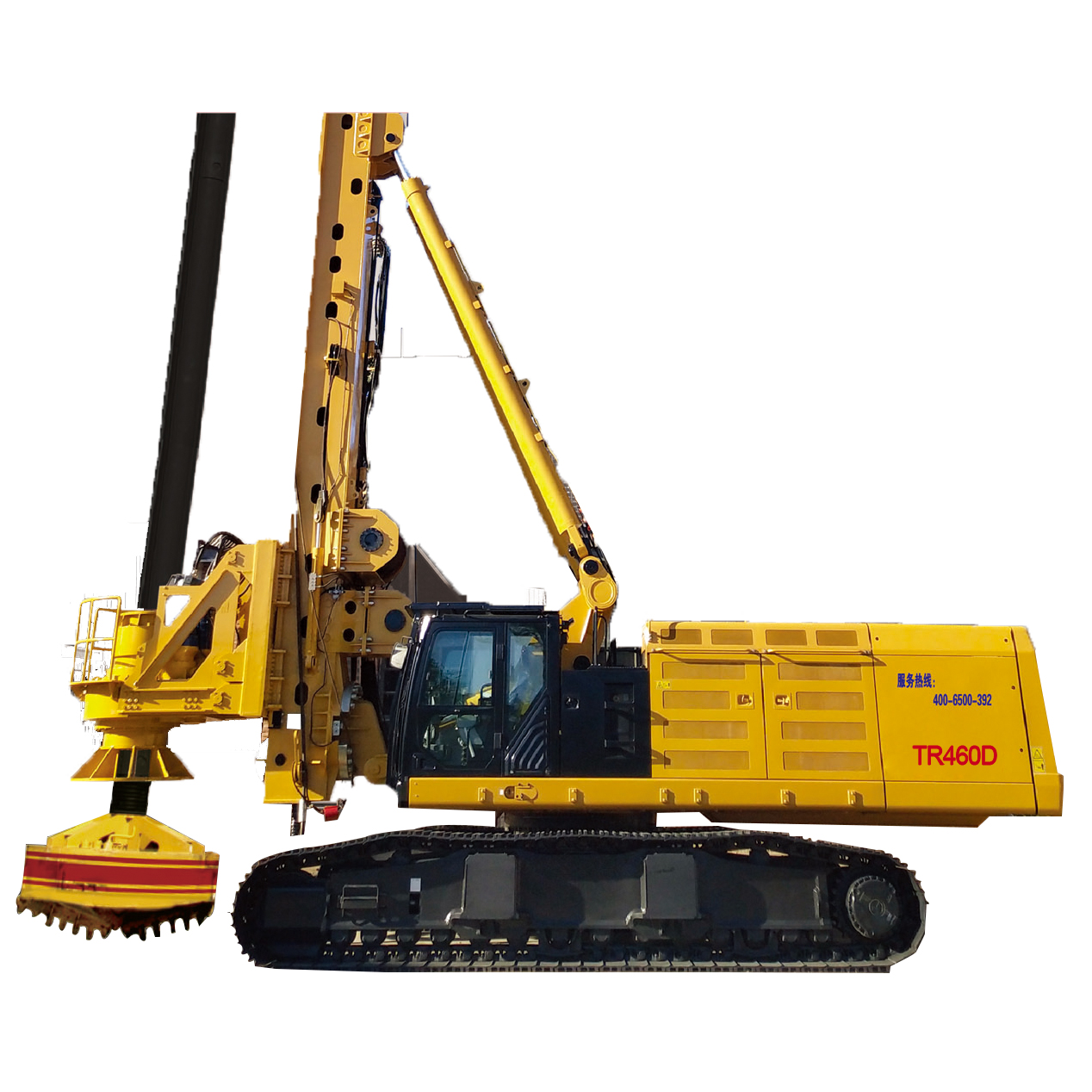

TR460D Rotary Drilling Rig Specifications
| Model |
- |
CAT |
|
| Rated power |
kw |
367 |
|
| Rated speed |
r/min |
2200 |
|
| Max. output torque |
kN·m |
450 |
|
| Drilling speed |
r/min |
6-21 |
|
| Max. drilling diameter |
mm |
3000 |
|
| Max. drilling depth |
m |
110 |
|
| Max. crowd force |
kN |
440 |
|
| Max. extraction force |
kN |
440 |
|
| Max. stroke |
mm |
12000 |
|
| Max. pull force |
kN |
400 |
|
| Max. pull speed |
m/min |
55 |
|
| Wire rope diameter |
mm |
40 |
|
| Max. pull force |
kN |
120 |
|
| Max. pull speed |
m/min |
65 |
|
| Wire rope diameter |
mm |
20 |
|
| Mast inclination Side/ forwards/ backwards |
° |
±6/10/90 |
|
| Interlocking Kelly bar |
- |
ɸ580*4*20.3m |
|
| Friction Kelly bar (optional) |
- |
ɸ580*6*20.3m |
|
| Traction |
kN |
896 |
|
| Tracks width |
mm |
1000 |
|
| Caterpillar grounding Length |
mm |
6860 |
|
| Working Pressure of Hydraulic System |
MPa |
35 |
|
| Total weight with kelly bar |
kg |
138000 |
|
| Working (Lx Wx H) |
mm |
9490x5500x28627 |
|
| Transportation (Lx Wx H) |
mm |
17250x3900x3500 |
|
Frequently Asked Questions
What engine powers the TR460 Rotary Drilling Rig?
The TR460 is powered by a high-performance CAT engine, offering a rated power of 367 kW at a rated speed of 2200 r/min.
What are the maximum drilling dimensions of the TR460?
The TR460 rotary drilling rig can reach a maximum drilling diameter of 3000 mm and a maximum drilling depth of 110 m.
How does the triangle support structure improve rig performance?
The triangle support structure reduces the turning radius of the rig, thereby increasing its overall operational stability, especially in complex geological conditions.
What type of main winch system is used, and how does it prevent line issues?
It features a rear-mounted main winch system equipped with double motors, double reducers, and a single-layer drum design. This unique structure effectively avoids rope winding.
What are the transportation dimensions of the TR460?
For ease of transportation, the dimensions of the rig are optimized to 17250 mm in length, 3900 mm in width, and 3500 mm in height.
