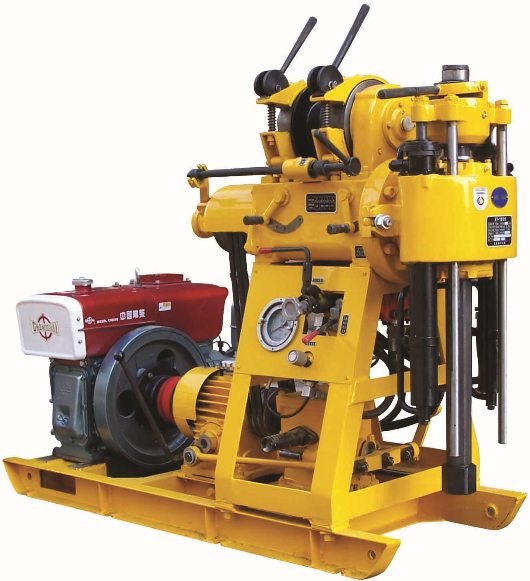

Famous XY-1 100m Depth Spindle Type Diesel Borehole Core Drilling Rig Supplier, Products

XY-1 core drilling rig can be used to geological exploration, physical geography exploration, road and building exploration, and blasting drilling holes etc. Diamond bits, hard alloy bits and steel-shot bits could be selected to meet different layers.The nominal drilling depth of XY-1 core drilling rig is 100 meters; the maximum depth is 120 meters. The nominal diameter of initial hole is 110mm, the maximum diameter of initial hole is 130 mm, and the diameter of final hole is 75 mm. The drilling depth depends on different conditions of stratum.

Send Inquiry

Product Description

Technical Specifications

Category	Parameter Details		Value
Fundamental Parameters	Max. Drilling Depth		100m
	Diameter of the initial hole		110mm
	Diameter of the final hole		75mm
	Diameter of drilling rod		42mm
	Angle of drilling		90°-75°
Rotation Unit	Spindle speed (3 positions)		142, 285, 570rpm
	Spindle stroke		450mm
	Max. feeding pressure		15KN
	Max. lifting capacity		25KN
	Max. lifting speed without load		3m/min
Hoisting	Max. lifting capacity (single wire)		10KN
	Rotation speed of drum		55, 110, 220rpm
	Diameter of the drum		145mm
	Circumferential velocity of the drum		0.42, 0.84, 1.68m/s
	Diameter of the wire rope		9.3mm
	Drum capacity		27m
	Brake diameter		230mm
	Brake band width		50mm
Water Pump	Max. displacement	With electrical motor	77L/min
	Max. displacement	With diesel engine	95L/min
	Max. pressure		1.2Mpa
	Diameter of liner		80mm
	Stroke of piston		100mm
Hydraulic Oil Pump	Model		YBC-12/80
	Nominal pressure		8Mpa
	Flow		12L/min
	Nominal speed		1500rpm
Power Unit	Type of diesel (ZS1100)	Rated power	10.3KW
	Type of diesel (ZS1100)	Rated rotating speed	2000rpm
	Type of electrical motor (Y132M-4)	Rated power	7.5KW
	Type of electrical motor (Y132M-4)	Rated rotating speed	1440rpm
Overall Dimension			164010301440mm
Total Weight (not include power unit)			500kg

Key Features & Advantages

XY-1 core drilling rig is hydraulic feed with simple operation and high efficiency.

As the ball type chuck and the driving rod, XY-1 core drilling rig can complete no-stopping rotating while the spindle relit.

The pressure indicator of bottom hole can be observed and the well conditions controlled easily.

Close levers, convenient to operate, safe and reliable.

Compact size and use same base for the installation of rig, water pump and diesel engine, just need small space.

Light in weight, easy to assemble, disassemble and transport, suitable for plains and mountain area.

Applications & Performance

XY-1 core drilling rig can be used to geological exploration, physical geography exploration, road and building exploration, and blasting drilling holes etc. Diamond bits, hard alloy bits and steel-shot bits could be selected to meet different layers. The nominal drilling depth of XY-1 core drilling rig is 100 meters; the maximum depth is 120 meters. The nominal diameter of initial hole is 110mm, the maximum diameter of initial hole is 130 mm, and the diameter of final hole is 75 mm. The drilling depth depends on different conditions of stratum.

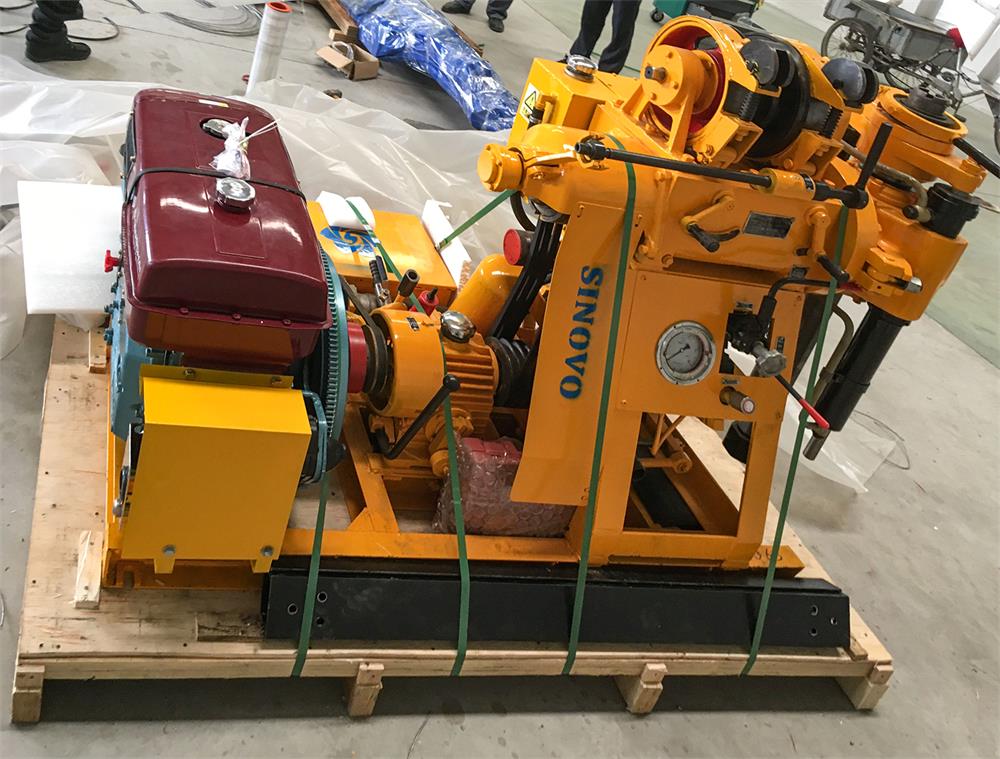

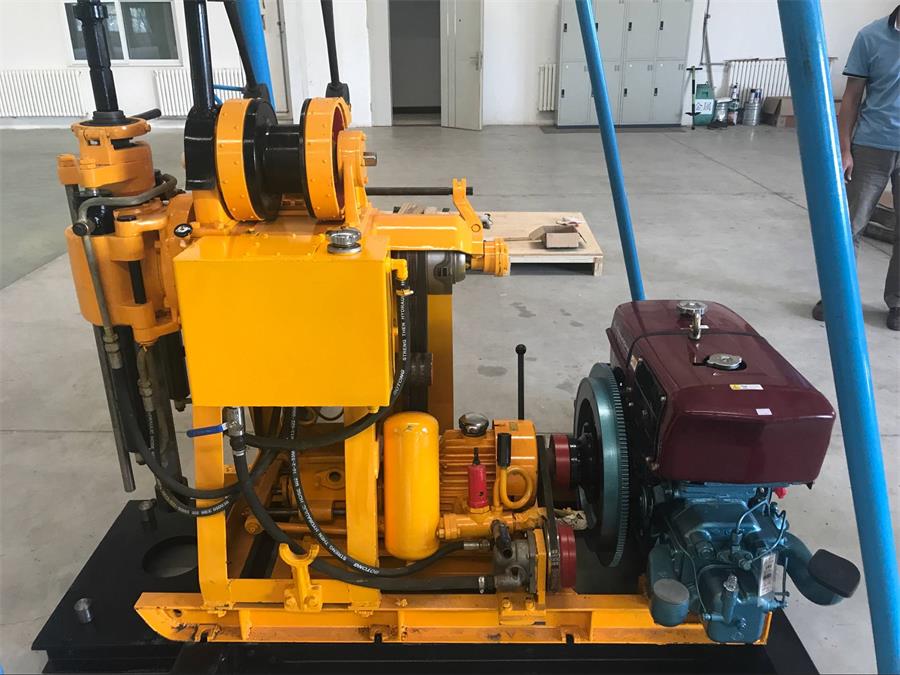

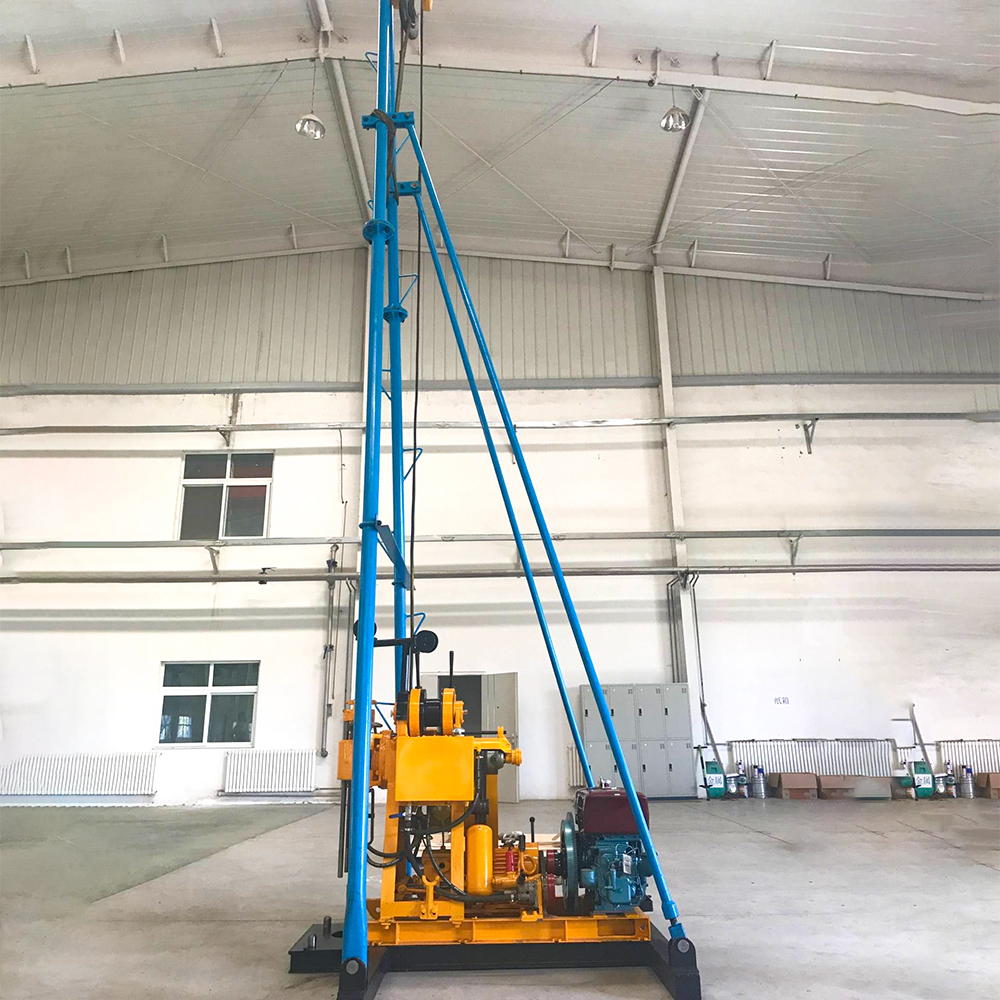

Product Gallery

Frequently Asked Questions (FAQ)

What is the drilling capacity of the XY-1 core drilling rig?

The XY-1 core drilling rig has a nominal drilling depth of 100 meters and a maximum drilling depth capability of 120 meters. The drilling depth varies depending on different stratum conditions.

Which types of drill bits are compatible with this rig?

Diamond bits, hard alloy bits, and steel-shot bits can be selected and used with the XY-1 core drilling rig to effectively penetrate and meet different stratigraphic layers.

What are the primary applications of the XY-1 core drilling rig?

It is widely used for geological exploration, physical geography exploration, road and building construction exploration, and the drilling of blasting holes.

What are the power options available for this drilling rig?

It can be powered by either a ZS1100 diesel engine with a rated power of 10.3KW (2000rpm) or a Y132M-4 electrical motor with a rated power of 7.5KW (1440rpm).

How portable is the XY-1 core drilling rig?

The rig has a total weight of 500kg (excluding the power unit). Its compact size allows it to share a base with the water pump and power unit, making it easy to assemble, disassemble, and transport in plains and mountain areas.

What is the feed mechanism of this core drilling rig?

The XY-1 core drilling rig features a hydraulic feed mechanism, which allows for simple, easy operations and guarantees high working efficiency.
