XY-200 series core drllingrig is light type diling rig with large torque and feed by oil pressure,which wasdeveloped on the basis of XY-1B,and also havethe function of reverse rotation of the gear.User can choosethe machine by considering if the dilling ng equip the mud pump or mounted on skid.

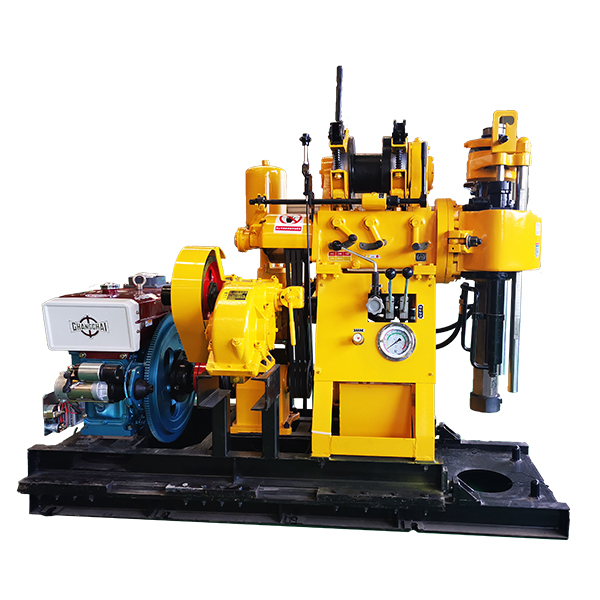

XY-200 series core drilling rig is a light-type drilling rig featuring large torque and oil-pressure feed. Developed on the basis of the XY-1B, it also integrates a reverse rotation gear function. Users can customize the machine depending on whether the drilling rig requires an equipped mud pump or is mounted on a skid.
1. Application Range
1
Railway, water conservancy, electricity, transportation, bridge, dam foundation, and other buildings for engineering geological exploration.
2
Geological core drilling and physical exploration.
Features a top ball clamping structure combined with a hexagonal kelly bar, realizing non-stop recheck. Operation is safe, reliable, and highly efficient.
3
Equipped with a bottom-hole pressure gauge, allowing operators to monitor real-time conditions inside the borehole.
4
Centralized control handles make the system convenient and simple to operate.
5
Compact, lightweight, and easily disassembled structure makes it highly suitable for work in plain and mountainous areas.
6
Eight-sided spindle structure with expanded diameter allows larger Kelly bars to enter, facilitating high torque transmission.
7
Diesel engine is equipped with an electric starter system.
3. Fundamental Parameters
Specification Parameter
Unit
XY-200 Detail
Drilling depth
m
200
Drilling diameter
mm
75
Active drill rod
mm
53 x 59 x 4200
Drilling rod diameter
mm
50
Drilling angle
°
90 - 75
Overall dimension (L*W*H)
mm
1750 x 850 x 1300
Rig weight (excluding power)
kg
550
Moving stroke
mm
350
Distance away from hole
mm
300
Rotate speed of vertical (4 position)
r/min
66, 180, 350, 820
Spindle stroke
mm
450
Maximum upward movement speed of spindle axis without load
m/s
0.05
Maximum downward movement speed of spindle axis without load
m/s
0.067
Maximum spindle feed force
KN
15
Maximum spindle lifting capacity
KN
25
Maximum output torque of spindle axis
KN.m
1.8
Brake diameter
mm
278
Barrier width
mm
50
Winch
Maximum lifting capacity (single rope)
KN
25
Roll circumference linear velocity (second layer)
m/s
0.17, 0.35, 0.75, 1.5
Rotate speed of drum
r/min
20, 40, 90, 180
Rotate diameter of drum
mm
140
Wire rope diameter
mm
9.3
Wire rope length
m
40
Oil Pump
Model
-
YBC-12/125
Nominal pressure
Mpa
12.5
Flow
ml/r
8
Nominal speed
r/min
800 - 2500
Type
-
Horizontal single cylinder double acting
Maximum displacement (electric motor)
L/min
95 (77)
Maximum working pressure
Mpa
1.2
Rated working pressure
Mpa
0.7
Diameter of liner
mm
80
Stroke of piston
mm
100
Power Engine
Diesel engine model
-
ZS1115
Rated power
KW
16.2
Rated speed
r/min
2200
Motor model
-
Y160-4
Rated power
KW
11
Rated speed
r/min
1460
Frequently Asked Questions (FAQ)
Q1: What is the maximum drilling depth of the XY-200 core drilling rig?
A1: The XY-200 core drilling rig has a rated maximum drilling depth of up to 200 meters.
Q2: What are the primary applications for this drilling rig?
A2: It is highly suited for engineering geological exploration in railways, water conservancy, bridge building, dam foundations, geological core drilling, physical exploration, small blast hole drilling, and drilling small water wells.
Q3: What power engine options are available for the XY-200?
A3: The rig can be configured either with a ZS1115 Diesel Engine (rated at 16.2 KW) or a Y160-4 Electric Motor (rated at 11 KW) based on site requirements.
Q4: Is the XY-200 suitable for remote or mountainous areas?
A4: Yes, the rig features a compact structure, small overall dimensions, and a light weight of 550 kg (excluding power). It is easy to disassemble and move, making it highly suitable for both plains and mountainous terrain.
Q5: How does the oil pressure feed system improve operations?
A5: The hydraulic oil pressure feeding system improves overall drilling efficiency and minimizes physical labor intensity for operators.
Q6: Can the spindle handle large torque transmissions?
A6: Yes, the spindle is designed with an eight-sided structure and an expanded diameter, which allows it to connect with large-diameter Kelly bars to safely and efficiently transmit higher torque.
