ODM XY-5A core drilling rig Quotes, Product

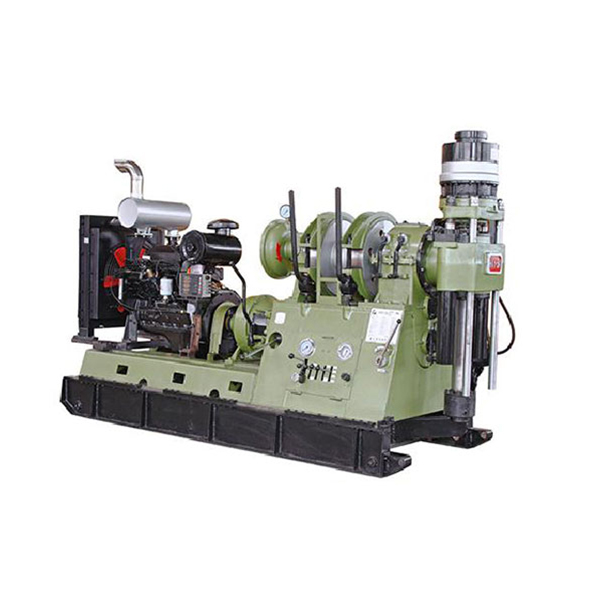

The XY-5A core drilling rig can be used for oblique and straight hole drilling. It has the advantages of simple and compact structure, reasonable layout, moderate weight, convenient disassembly, and wide speed range. The drilling rig is equipped with a water brake, which has a large lifting capacity and is easy to operate when lifting the brake at a low position.

Send Inquiry

Product Description

Product Introduction

Technical Characteristics

The drilling rig has a large number of speed levels (8 levels) and a reasonable speed range, with high low-speed torque. Strong process adaptability, suitable for small diameter diamond core drilling, and meets the requirements of large diameter hard alloy core drilling and some engineering drilling.
The drilling rig is lightweight and has good detachablity. It can be decomposed into eleven components, making it easy to relocate and suitable for operations in mountainous areas.
The structure is simple, the layout is reasonable, and it is easy to maintain, service, and repair.
The drilling rig has two reverse speeds for convenient accident handling.
The center of gravity of the drilling rig is low, firmly fixed, and the moving vehicle is stable. It has good stability during high-speed drilling.
The instruments are complete and convenient for observing various drilling parameters.
The operating handle is centralized, easy to operate, simple, and flexible.
The mud pump is independently driven, with flexible power configuration and airport layout.
According to user needs, circular slips can be configured to directly grip the rope drill rod for drilling, eliminating the need for active drill rods.
The hydraulic system is equipped with a hand operated oil pump. When the power machine cannot work, it can still deliver pressure oil to the feed oil cylinder, lift out the drilling tools in the hole, and avoid drilling accidents.
The winch is equipped with a water brake to ensure smooth and safe drilling during deep hole drilling.

Performance Parameters

Parameter Description		Specifications & Values
1. Basic parameters
Drill depth	Φ42mm drill pipe	1800m
	Φ73mm drill pipe	800m
	BQ drill pipe	1800m
	NQ drill pipe	1500m
Vertical axis rotation angle		0～360°
External dimensions (L × W × H)	Assembly of electric motor	3500 × 1300 × 2175mm
External dimensions (L × W × H)	Assembling diesel engines	3700 × 1300 × 2175mm
Weight of drilling rig (excluding power)		3420kg
2. Rotator (when equipped with a 55kW, 1480r/min power machine)
Vertical shaft speed	Forward to low speed	98; 166; 253; 340 r/min
	Forward to High Speed	359; 574; 876; 1244 r/min
	Reverse low-speed	69 r/min
	Reverse High Speed	238 r/min
Vertical axis travel		600mm
Maximum lifting force of vertical axis		138.5kN
Feeding capacity		93kN
Maximum turning torque of vertical shaft		5361 N·m
Vertical shaft through-hole diameter		92mm
3. Winch (when equipped with a 55kW, 1480r/min power machine)
Maximum lifting capacity of single rope (1st layer)		60kN
Wire rope diameter		18.5mm
Drum capacity rope capacity		120m
4. Vehicle moving device
Moving the oil cylinder stroke		600mm
5. Hydraulic system
System set working pressure		8MPa
Gear oil pump displacement		20 + 16 ml/r
6. Drilling rig power
Feature	Y2-250M-4 Motor Option	YC6B135Z-D20 Diesel Engine Option
Model	Y2-250M-4	YC6B135Z-D20
Power	55kW	84kW
Speed	1480r/min	1500r/min

Frequently Asked Questions (FAQ)

Q: What types of drilling applications is the XY-5A core drilling rig suitable for?

The XY-5A is highly versatile and can be used for both oblique and straight hole drilling. It is ideal for small-diameter diamond core drilling, large-diameter hard alloy core drilling, and various engineering drilling projects.

Q: How easily can the XY-5A drilling rig be transported to remote areas?

The rig is lightweight and designed with exceptional detachability. It can be easily disassembled into eleven components, which makes it convenient to relocate and operate in difficult terrains like mountainous areas.

Q: What safety measures prevent drilling accidents during power failures?

The hydraulic system is built with an integrated hand-operated oil pump. In the event of a power machine failure, this hand pump can deliver pressure oil to the feed oil cylinder, allowing operators to safely lift the drilling tools out of the hole.

Q: What is the maximum drilling depth capacity of the XY-5A?

The maximum drilling depth is 1800 meters when utilizing BQ drill pipes or Φ42mm drill pipes. It can reach up to 1500 meters with NQ drill pipes and 800 meters with Φ73mm drill pipes.

Q: What kinds of power sources can be configured with this drilling rig?

It can be configured with either a Y2-250M-4 electric motor supplying 55kW of power at 1480r/min, or a YC6B135Z-D20 diesel engine delivering 84kW at 1500r/min, allowing for flexible configuration based on site conditions.

Q: How does the winch system assist with deep-hole operations?

The winch is equipped with a dedicated water brake system. This setup delivers a large lifting capacity and ensures smooth, safe, and controlled braking transitions during deep hole drilling.
