| Fundamental parameters | Drilling depth | 100, 180m | |
| Max. Diameter of the initial hole | 150mm | ||
| Diameter of the final hole | 75, 46mm | ||
| Diameter of drilling rod | 42, 43mm | ||
| Angle of drilling | 90°-75° | ||
| Rotation unit | Spindle speed (5 positions) | 1010, 790, 470, 295, 140rpm | |
| Spindle stroke | 450mm | ||
| Max. feeding pressure | 15KN | ||
| Max. lifting capacity | 25KN | ||
| Hoisting | Single wire lifting capacity | 11KN | |
| Rotation speed of drum | 121, 76, 36rpm | ||
| Drum circumferential velocity (two layers) | 1.05, 0.66, 0.31m/s | ||
| Diameter of the wire rope | 9.3mm | ||
| Drum capacity | 35m | ||
| Hydraulic oil pump | Model | YBC-12/80 | |
| Nominal pressure | 8Mpa | ||
| Flow | 12L/min | ||
| Nominal speed | 1500rpm | ||
| Power unit | Type of diesel (S1100) | Rated power | 12.1KW |
| Rated rotating speed | 2200rpm | ||
| Type of electrical motor (Y160M-4) | Rated power | 11KW | |
| Rated rotating speed | 1460rpm | ||
| Overall dimension | XY-1A | 1433*697*1274mm | |
| XY-1A-4 | 1700*780*1274mm | ||
| XY-1A (YJ) | 1620*970*1560mm | ||
| Total weight (not include power unit) | XY-1A | 420kg | |
| XY-1A-4 | 490kg | ||
| XY-1A (YJ) | 620kg | ||

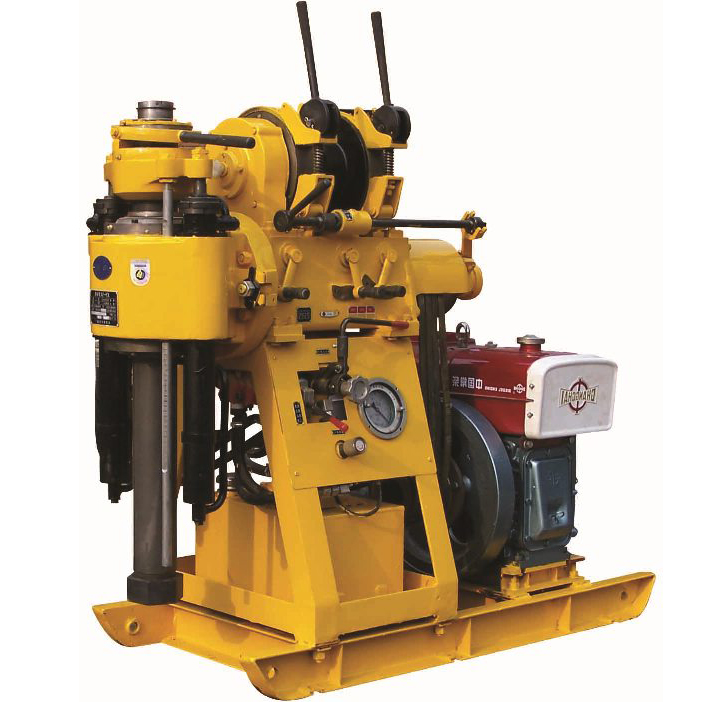

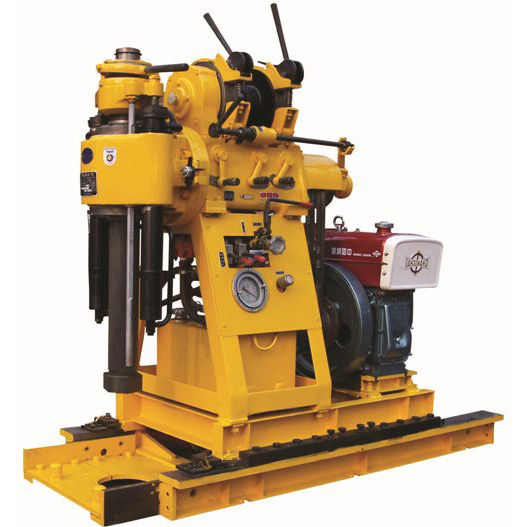

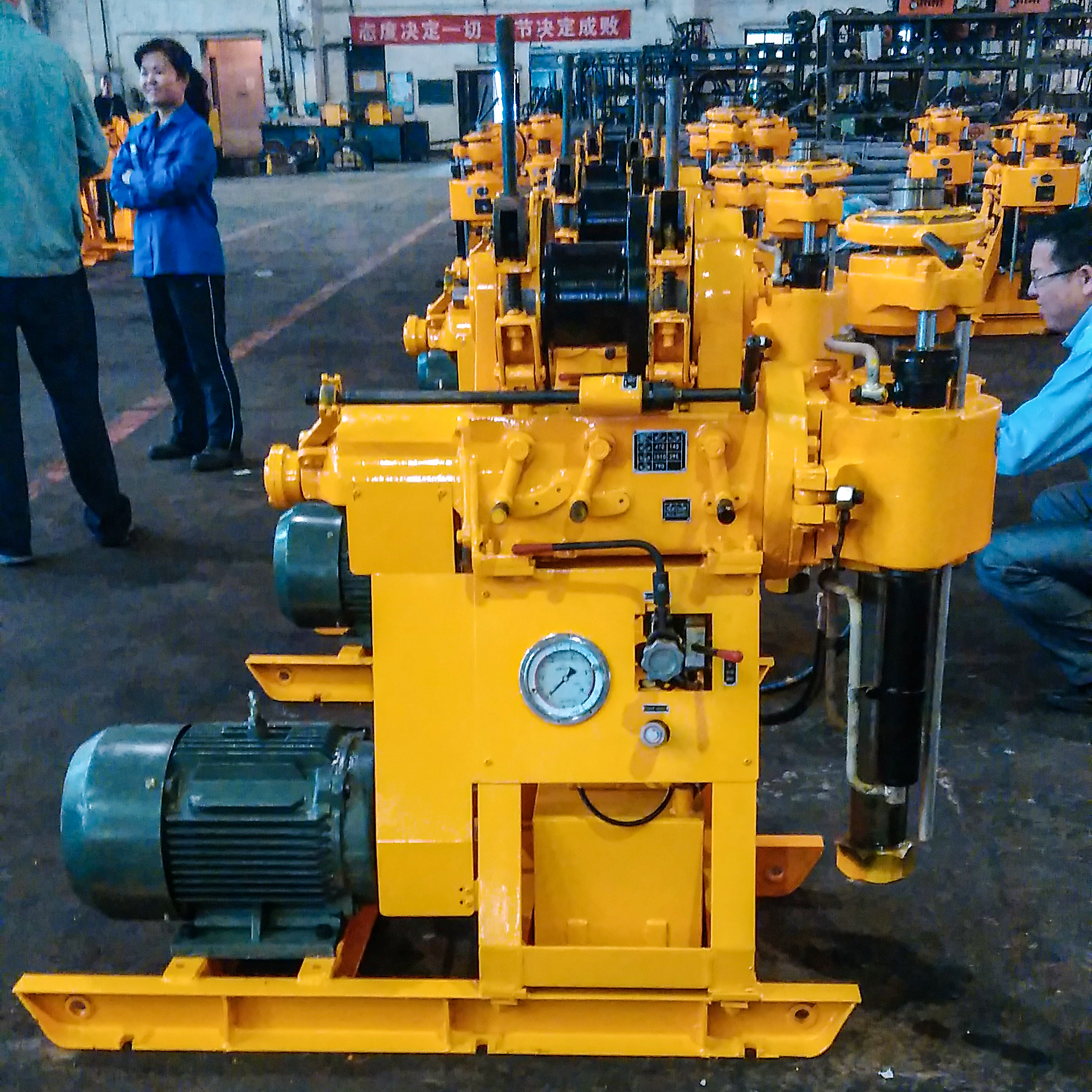

Equipped with an oil pressure feeding mechanism to significantly improve drilling efficiency and reduce labor intensity for operators.
Features a high-efficiency ball clamping mechanism combined with a hexagonal active drill pipe, allowing rod reversal without stopping the machinery safely and reliably.
Centralized control handles ensure convenient, straightforward operation for onsite operators.
Integrated with a bottom-hole pressure gauge, making it simple to monitor inside-hole conditions and adjust pressure accordingly.
Compact structure, lightweight, and easy disassembly make it highly suitable for transport and operations in plains and mountainous terrains.
Highly applicable for general solid deposit exploration, engineering geological exploration, and inspection holes for concrete structures.
Supports a wide speed range with high-speed gears. Diamond, cemented carbide, and steel particle bits can be selected to adapt to various geological conditions.
Delivers a rated drilling depth of 100m (with a final 75mm hole) and 180m (with a final 46mm hole). The allowed maximum initial opening diameter is 150mm.
The rig achieves a rated drilling depth of 100 meters with a final hole diameter of 75mm, and up to 180 meters with a final hole diameter of 46mm. The maximum initial hole diameter is 150mm.
You can configure the rig with either a diesel engine (S1100 model with 12.1KW rated power at 2200rpm) or an electrical motor (Y160M-4 model with 11KW rated power at 1460rpm).
Yes. Thanks to the integrated ball clamping mechanism and hexagonal active drill pipe, operators can reverse the rod without stopping the machine, enhancing working efficiency and safety.
The rig is equipped with high-speed gears and has a wide speed range. Depending on geological conditions, it can use diamond bits, cemented carbide bits, or steel particle bits for drilling.
Yes. The XY-1A features a compact structure, small volume, and light weight. It is designed for easy disassembly and handling, making it ideal for work in both plains and mountains.
Excluding the power unit, the weights and dimensions are: XY-1A (420kg, 1433*697*1274mm), XY-1A-4 (490kg, 1700*780*1274mm), and XY-1A(YJ) (620kg, 1620*970*1560mm).
