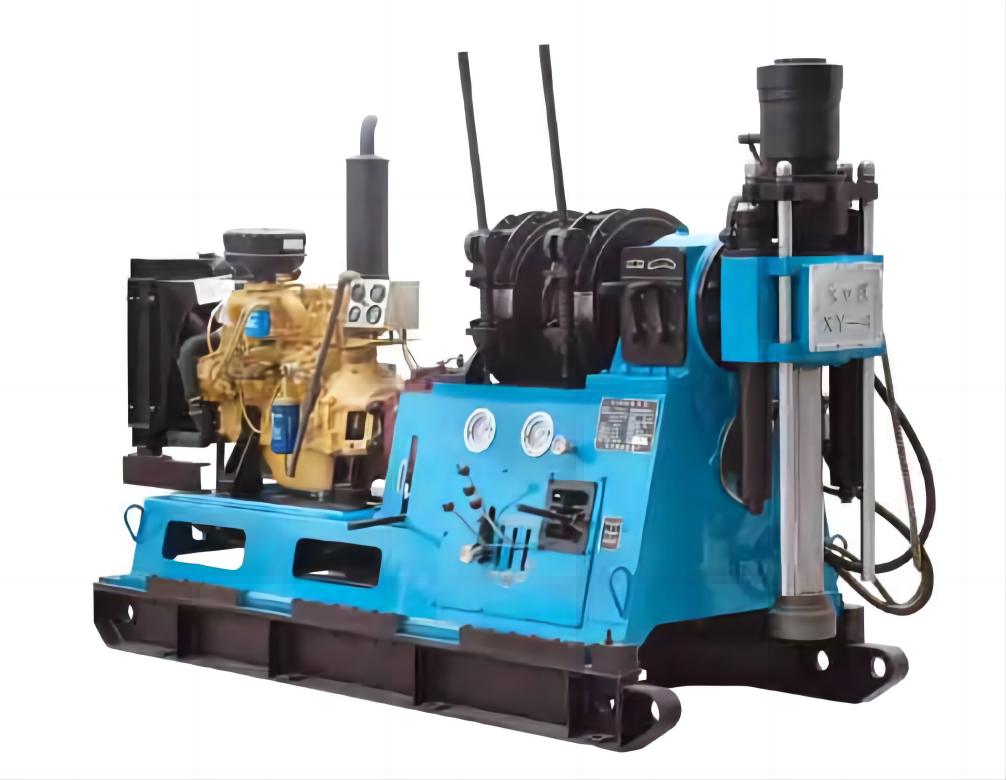

Introducing the XY-4 core drill rig, a cutting-edge solution for geological exploration and coring projects. This innovative drill rig is designed to deliver reliable, efficient performance in a variety of drilling applications, making it the perfect choice for geologists, mining companies, and construction companies.
The XY-4 core drilling rig is equipped with advanced features and capabilities to ensure precise, accurate drilling results. It is powered by a high-performance engine that delivers the power and torque needed to drill through the toughest geological formations. The gear also features a durable and sturdy construction, making it suitable for use in remote and challenging environments.
Ideal for geological exploration, mineral exploration, and environmental monitoring. Supports both diamond and tungsten carbide coring for flexible site operations.
Equipped with advanced technology allowing precise positioning and depth control to guarantee maximum accuracy for core sample extraction.
Ergonomic control panel minimizes operator fatigue. Built-in safety measures include emergency stop buttons and automatic shut-off functions.
High-speed rotation and robust feeding systems lower drilling cycle times, significantly boosting productivity and reducing labor costs.
| 1, Drilling Capacity | ||||
| Core drilling | ||||
| Drilling rod type | Drilling rod size | Drilling depth | ||
| Drilling rod(China) | Inner thicken drilling rod | 42mm Drilling rod | 900m | |
| 50mm Drilling rod | 700m | |||
| 60mm Drilling rod | 550m | |||
| Wireline drilling rods | 55.5mm Drilling rod | 750m | ||
| 71mm Drilling rod | 600m | |||
| 89mm Drilling rod | 480m | |||
| DCDMA Drilling rod | Wireline drilling rods | BQ Drilling rod | 800mm | |
| NQ Drilling rod | 600mm | |||
| NQ Drilling rod | 450mm | |||
| PQ Drilling rod | 250mm | |||
| 2, Spindle Turnable Angle | 0°-360° | |||
| 3, Power | Model | Power | R.Speed | Weight |
| Electric motor | Y225S-4 | 37KW | 1480 r/min | 300kgs |
| Diesel engine | YCD4K11T-50 | 37KW | 2200 r/min | 300kgs |
| 4, Rotary Table | ||||
| Type | Double-cylinder feeding and mechanical rotation | |||
| Spindle diameter | Φ8mm | |||
| Spindle speed | Forward(r/min) 48 87 150 230 327 155 280 485 745 1055 | |||
| Reverse(r/min) 52 170 | ||||
| Max.torque | 5757N·m | Feeding travel of spindle | 600mm | |
| Max. uplifting force of spindle | 80KN | Max. feeding force of spindle | 60KN | |
| 5, Hoist | ||||
| Type | Planetary gear transmission system | |||
| Diameter of wire rope | Φ15.5mm | |||
| Bobbin capacity | 89m(seven layers) | |||
| Max. hoisting force(Single rope) | 48KN | |||
| Lifting speed | Hoisting velocity(third layer) 0.46 0.83 1.44 2.21 3.15 | |||
| 6, Clutch | ||||
| Type | A typical 130-type vehicle-specific dry single-disc friction clutch | |||
| 7, Hydraulic system | ||||
| System pressure | ||||
| Rated pressure | 8Mpa | Maximum Pressure | 10Mpa | |
| Oil pump | With Diesel engine | With electric motor | ||
| Oil gear pump | CB-E25 | CB-E40 | ||
| Displacement | 25mL/r | 40mL/r | ||
| Rated speed | 2000r/min | 2000r/min | ||
| Rated pressure | 16Mpa | 16Mpa | ||
| Maximum Pressure | 20Mpa | 20Mpa | ||
| 8, Frame | ||||
| Type | Sliding type(with base frame) | |||
| Movable travel of drill | 460mm | Distance between drill and hole-opening | 260mm | |
| 9, Drill dimension(LxWxH) | 2850x1050x1900mm | |||
| 10, Rig weight(Engine is not included) | 1600kgs | |||
