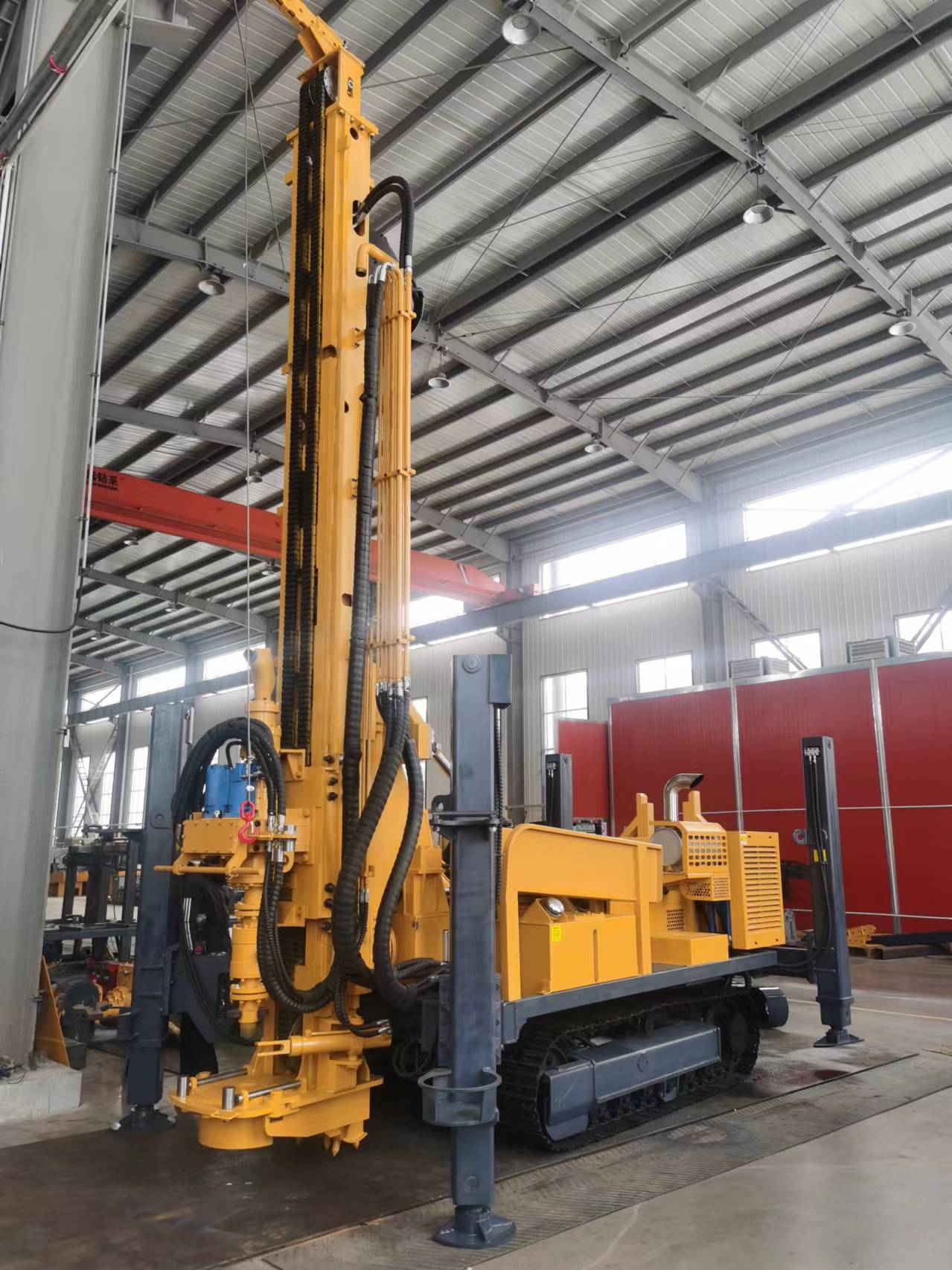

Discount SRC 600 Top-drive type fully hydraulic Reverse circulation drilling rig Factories, Exporters

Back cycle series multi-function drilling rig is a new type, high efficiency, environmental protection, multi-function track drilling rig, it adopts the latest foreign RC drilling technology, rock dust can be effectively collected through the dust collector to avoid environmental pollution. It can also be collected by cyclone separator, which can be used for sampling and analysis of geological exploration department. It is the preferred equipment for geological exploration and drilling holes and other deep holes.

Send Inquiry

Product Description

The Back cycle series multi-function drilling rig is a new type of highly efficient, environmentally friendly, multi-function crawler drilling rig. Adopting the latest foreign RC (Reverse Circulation) drilling technology, it allows rock dust to be effectively collected through a dust collector to prevent environmental pollution. The dust can also be gathered by a cyclone separator, making it ideal for sampling and analysis by geological exploration departments. It is the premier choice of equipment for geological exploration, drilling holes, and other deep-hole operations.

This drill uses compressed air for reverse circulation down-the-hole (DTH) drilling across a variety of geological strata. The drilling rig's functions—including drilling frame lifting, frame compensation, rod connection and unloading, rotation, feeding, hydraulic leg adjustments, rolling, and walking—are entirely powered by the hydraulic system. This significantly reduces labor intensity while boosting construction efficiency and engineering quality.

Key Operational Features:

• The combination of a drill rod elevator and hydraulic wrench makes handling drill rods safe, quick, and convenient, reducing operational strain.

• A unique centering design, paired with a leveling instrument, ensures absolute centering accuracy. The split design opens and closes freely with variable inner diameters that match the drill perfectly.

• Features a patented air pre-filter that filters out over 90% of dust from the intake air and automatically exhausts it. This reduces engine wear and extends service life without requiring manual cleaning under harsh working conditions.

• A dedicated oil mist system for the compressor extends the service life of the impactor, while roller slides guarantee wear resistance and long-term durability.

Advantages of the Exploration and Drilling Rig Series

Power System: The main power system is powered by a highly reliable diesel engine-driven hydraulic system.

RC Operation: High-performance reverse cycle impactor for submersible hole operations, matched with varied impactors and drill heads depending on hole size.

Modular Design: Standard modular layout allows the rig module to be optionally mounted on crawler chassis or truck beds.

High Torque: Rig rotation is driven by two-point motors, delivering high torque and adjustable speeds to suit different working conditions.

Cylinder Plate Chain: Utilized for drilling and lifting, providing safe and reliable operation. Drilling shaft pressure and speed are highly adjustable.

Independent Radiator: Features an independent hydraulic oil radiator to ensure continuous outdoor operation under high temperatures.

Lifting Hoist: A flexible hoist capable of lifting up to 1.5 tons of auxiliary drilling tools.

Hydraulic Jack: Multi-functional jacks level the fuselage during operations and assist in loading/unloading without external lifting equipment.

Thread Protection: A compensation cylinder stabilizes the frame, while a compensation skateboard protects and extends the thread life of drill pipes.

Technical Parameters

Host Model: SRC 600
Diesel Engine: Dongfeng Cummins 132KW
Adapt to rock species	f=6-20	Speed for best rate of climb	29m/min
Borehole diameter	105～450mm	Fast forward speed	28m/min
Maximum drilling depth	Down 600m	Rotary torque	12000/6000N*m
Working air pressure	1.6～6MPa	Rotation speed	0～186r/min
Gas consumption	16～75m³/min	Intake efficiency	10～35m/h
Power head trip	4000mm	Speed of travel	3Km/h
Run of steel	3000mm	Climbing capacity	21°
Drill diameter	￠89mm/￠102mm	Drill weight	12t
Axial pressure	7t	Outline dimension	7000×2100×2900mm
Build up	29t	Condition of compatibility	Loose layer and bedrock
Slow rise speed	2m/min	Drilling way	Air reverse circulation drilling
Slow forward speed	0.5～4m/min	With the impact	Medium and high wind pressure series

Frequently Asked Questions (FAQ)

What makes the Back Cycle series drilling rig environmentally friendly?

The rig utilizes advanced RC (Reverse Circulation) drilling technology. Rock dust is safely collected via a built-in dust collector or a cyclone separator, which keeps the workspace clean and prevents environmental contamination.

How is geological sampling gathered with this drilling rig?

A cyclone separator collects geological samples and rock dust directly from the drilling stream, making it highly convenient and accurate for geological exploration analysis.

How does the hydraulic system improve operational efficiency?

All essential operations—such as frame lifting, rod loading/unloading, rotation, feeding, and walking—are entirely hydraulic. This reduces labor intensity, improves safety, and accelerates construction timelines.

What strata types can the SRC 600 operate in?

The drilling rig is compatible with both loose layers and bedrock, utilizing air reverse circulation drilling paired with medium-to-high wind pressure impactors.

How does the machine extend the service life of its components?

It is equipped with a patented automatic air pre-filter that removes 90%+ of dust, a dedicated compressor oil mist system for the impactor, and a compensation skateboard to protect the drill pipe threads.
