OEM YTQH450B Dynamic compaction crawler crane Suppliers, Exporter

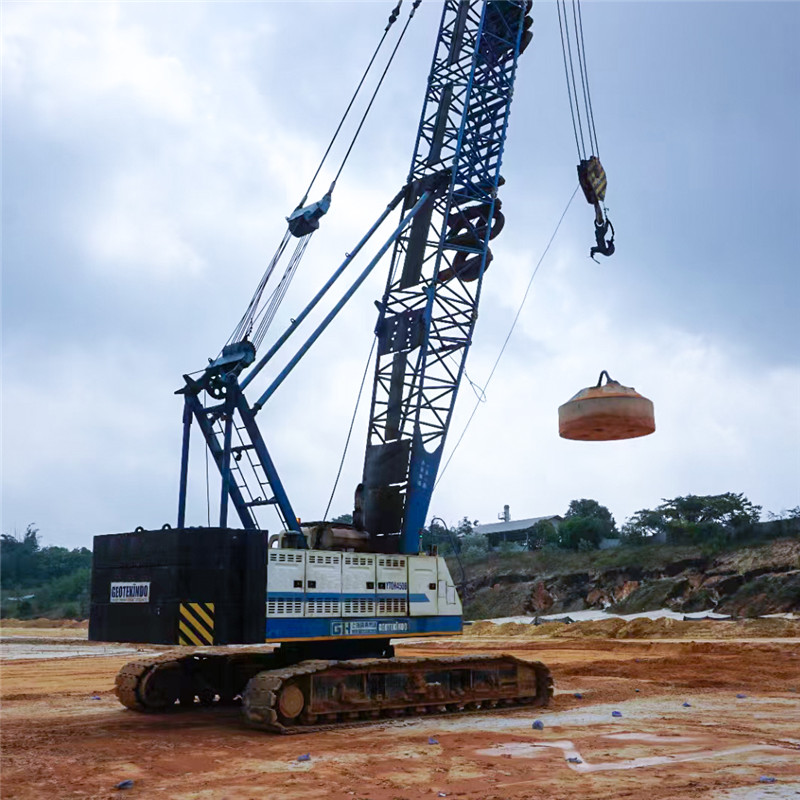

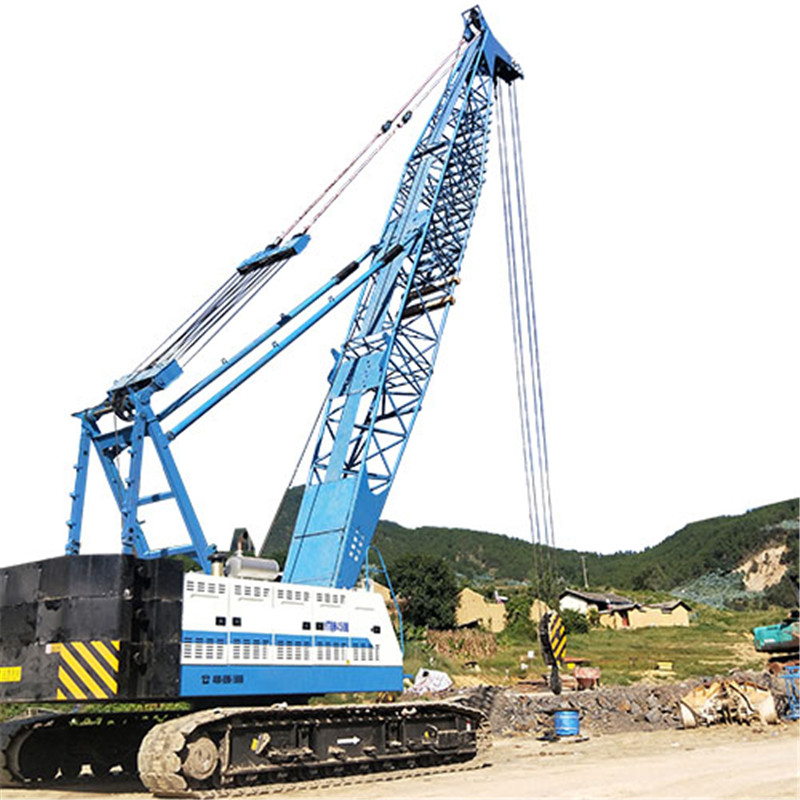

YTQH450B dynamic compaction crawler crane is the specialized full slewing & truss & full hydraulic dynamic compaction and lifting equipment independently developed according to the market demand basing on the several years’ expe1ience of manufacturing the engineering hoisting, compacting and dynamic compaction equipment. The model has high performance, high reliability and beautiful appearance，fully meets the dynamic compaction condition. Widely used in industrial and civil construction, warehouses, road, piers and other foundation consolidation, dynamic compaction construction work.

Send Inquiry

Product Description

Item	Unit	YTQH450B
Compaction capacity	t.m	450(800)
Hammer weight permit	t.m	22.5
Wheel tread	mm	5300
Chassis width	mm	3360(4890)
Track width	mm	800
Boom length	mm	19-25(28)
Working angle	°	60-77
Max.lift height	mm	25.96
Working radius	mm	6.5-14.6
Max. pull force	t.m	10-14
Lift speed	m/min	0-110
Slewing speed	r/min	0-1.8
Travel speed	km/h	0-1.4
Grade ability		35%
Engine power	kw	242
Engine rated revolution	r/min	1900
Total weight	t.m	66.8
Counter weight	t.m	21.2
Main body weight	t.m	38
Dimension (LxWxH)	mm	8010x3405x3420
Ground pressure ratio	M.pa	0.073
Rated pull force	t.m	8
Lift rope diameter	mm	28

Large hoisting single rope pulling force

Light and flexible operation

Continuous high-power performance

High security standards

Comfortable operation design

Convenient transportation

Frequently Asked Questions

What is the compaction capacity of the YTQH450B?

The YTQH450B features a standard compaction capacity of 450 t.m, with a maximum capacity capability reaching up to 800 t.m.

What are the engine specifications for this model?

It is powered by a high-performance 242 kW engine with a rated revolution of 1900 r/min, ensuring long-lasting and efficient power output.

How portable is the YTQH450B for transport?

The equipment has overall transport dimensions of 8010x3405x3420 mm and is designed specifically to ensure convenient and efficient transport between job sites.

What are the boom configurations and working capabilities?

The boom length ranges from 19 to 25 mm (extendable to 28 mm) with a working angle of 60 to 77 degrees, supporting a working radius of 6.5 to 14.6 mm.

What safety and operational features does it offer?

The model features a robust safety control design, lightweight and responsive controls, comfortable cabin ergonomics, and a high pull force on the hoisting single rope.

What is the ground pressure and gradeability of this unit?

The YTQH450B has a ground pressure ratio of 0.073 M.pa and offers a gradeability of 35%, making it highly stable on challenging terrain.
