Best YTQH350B Dynamic compaction crawler crane Manufacturer, Companies

YTQH350B Dynamic compaction crawler crane is the specialized dynamic compaction equipment development. According to the market demand basing on the several years’ experience of manufacturing the engineering hoisting, compacting and dynamic compaction equipment.

Send Inquiry

Product Description

Item	Unit	YTQH350B
Compaction capacity	t.m	350(700)
Hammer weight permit	t.m	17.5
Wheel tread	mm	5090
Chassis width	mm	3360(4520)
Track width	mm	760
Boom length	mm	19-25(28)
Working angle	°	60-77
Max.lift height	mm	25.7
Working radius	mm	6.3-14.5
Max. pull force	t.m	10-14
Lift speed	m/min	0-110
Slewing speed	r/min	0-1.8
Travel speed	km/h	0-1.4
Grade ability	%	40%
Engine power	kw	194
Engine rated revolution	r/min	1900
Total weight	t.m	58
Counter weight	t.m	18.8
Main body weight	t.m	32
Dimension(LxWxH)	mm	7025x3360x3200
Ground pressure ratio	M.pa	0.073
Rated pull force	t.m	7.5
Lift rope diameter	mm	26

Key Features & Advantages

Wide application range of dynamic compaction construction

Excellent power performance

High strength, reliability and stability chassis

High boom strength

Big single rope line pull for lifting winch

Easy and flexible control

Long-time and high-power operation

High safety

Comfortable operation

Easy transportation

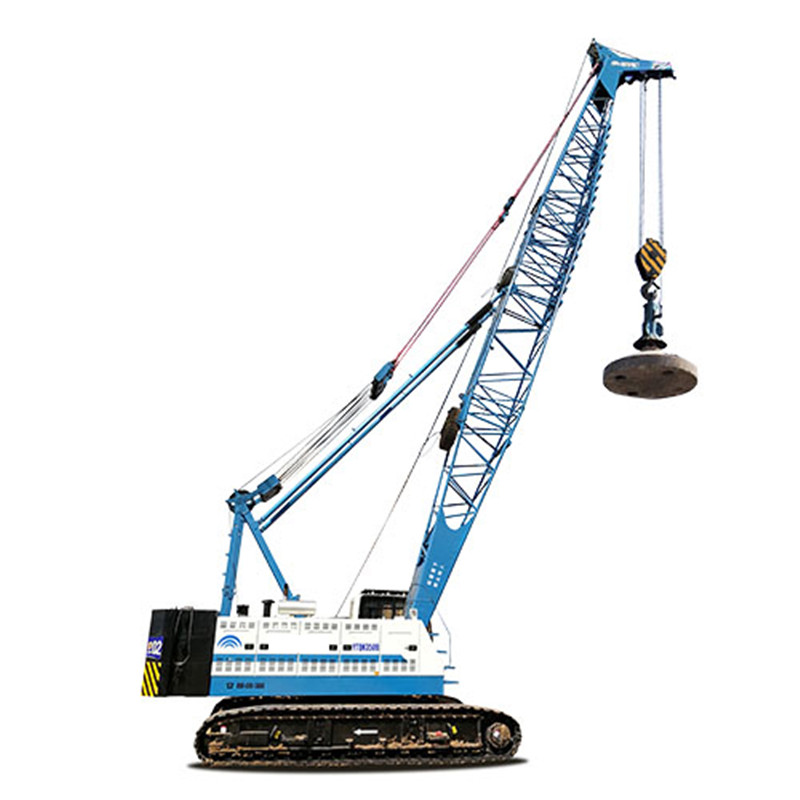

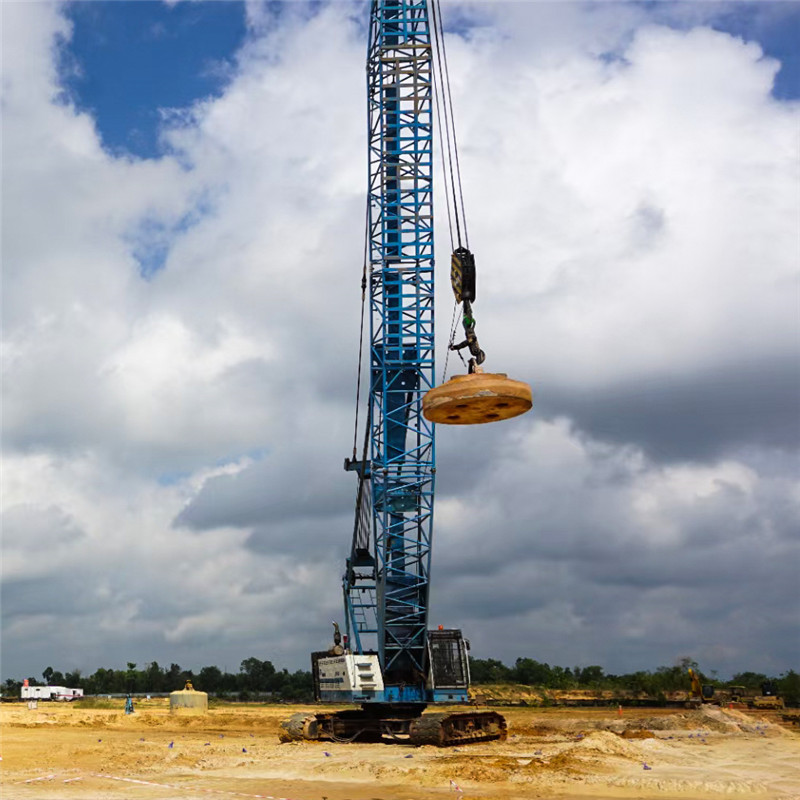

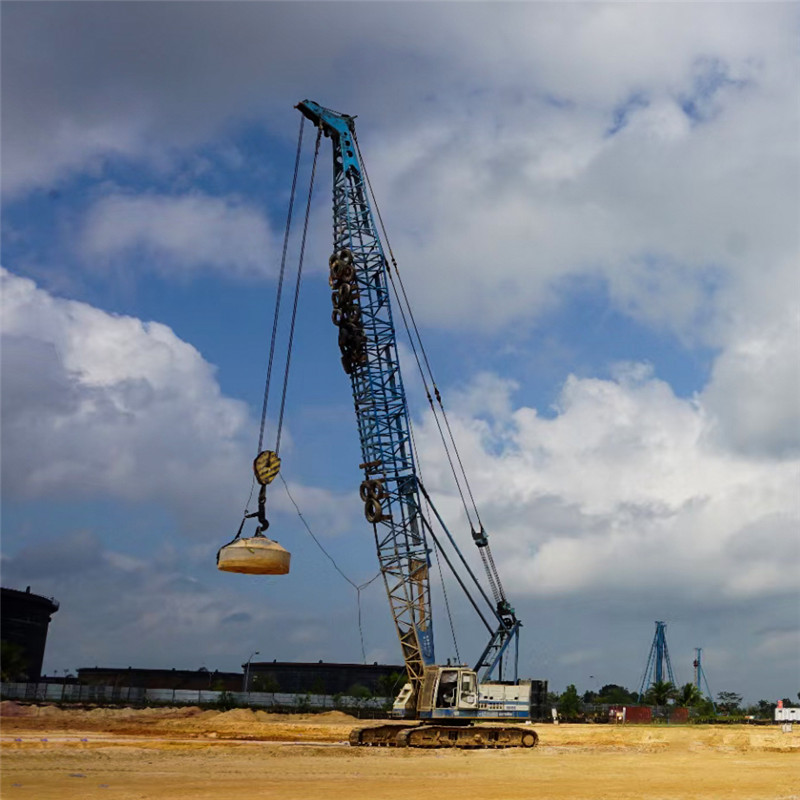

YTQH350B Dynamic Compaction Crawler Crane

Frequently Asked Questions

What is the compaction capacity of the YTQH350B?

The YTQH350B features a standard compaction capacity of 350 t.m, with a maximum capacity of up to 700 t.m.

What are the engine specifications for this model?

The machine is powered by a high-performance engine with an output of 194 kW and a rated engine speed of 1900 r/min.

What are the dimensions and total weight of the YTQH350B?

The total operating weight is 58 t.m, and its main body weight is 32 t.m. The overall transport dimensions are 7025 mm (Length) x 3360 mm (Width) x 3200 mm (Height).

Can this equipment handle steep terrain?

Yes, the YTQH350B is built with a high-strength chassis and boasts a gradeability rating of up to 40% for stable movement on sloped job sites.

What are the main application advantages of this machine?

Key advantages include a wide application range for dynamic compaction, high boom strength, large single line pull on the lifting winch, high safety standards, and features designed for comfortable long-time operations.
