Discount TG70 Diaphragm Wall Equipment Suppliers, Pricelist

SINOVO International is a leading Chinese construction machinery exporter.Since our company was founded, we continually introduce top Chinese construction machinery enterprises and their products to international markets. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.

Send Inquiry

Product Description

Continually introducing top construction machinery enterprises and their products to international markets, we not only make more international customers know and approve our products, but also gradually build up friendship with construction machinery customers all over the world.

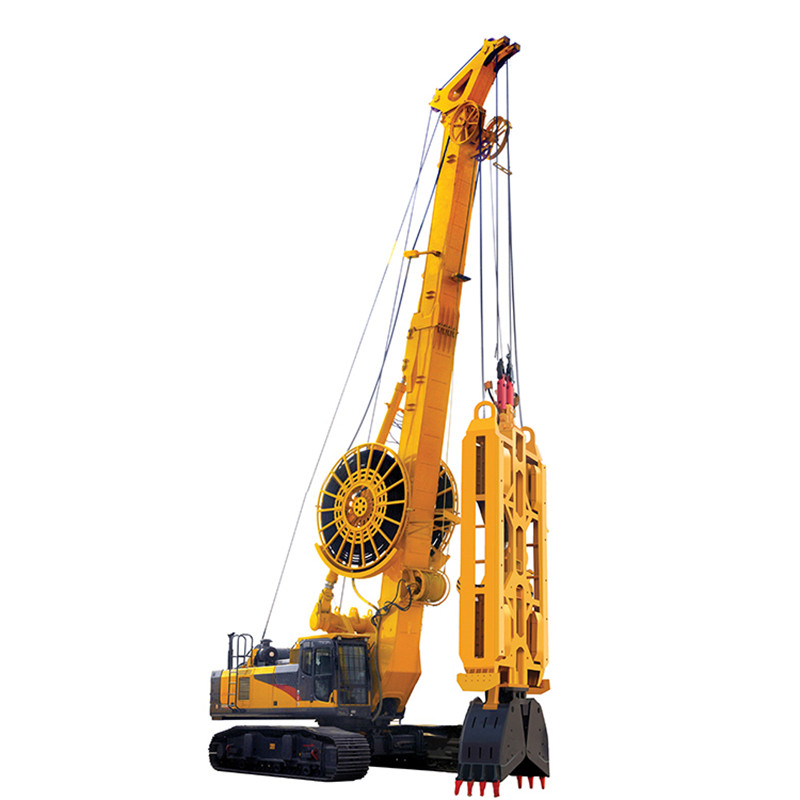

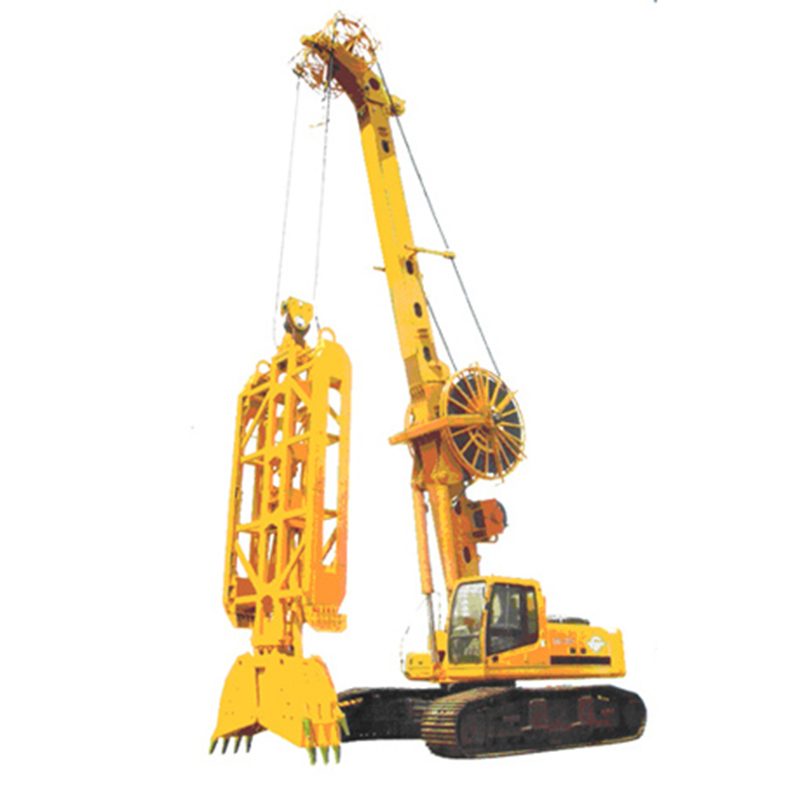

80 Meter depth hydraulic diaphragm wall equipments are underground structural elements principally used for retention systems and permanent foundation walls.

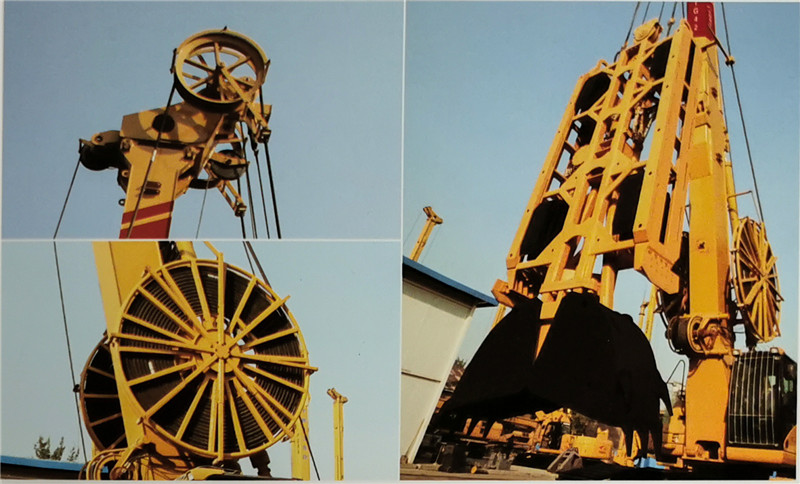

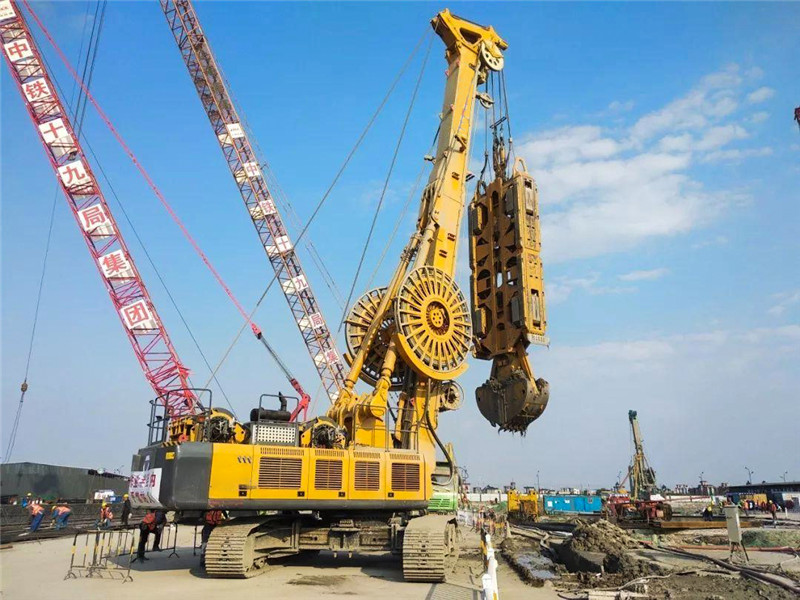

As a result of their undoubted strength, simplicity and low running cost, our TG Series cable-operated grabs for diaphragm Walls are widely used in the construction of foundations and trenches. Rectangular or semicircular jaws with their relative guides are interchangeable on the actual grab body. Unloading is done by taking advantage of the grab body's weight. When released by the rope, the grab descends with considerable force, thus helping unload material from the jaws.

Key Features & Advantages

The special main engine has good adaptability to working conditions and high stability of the whole machine;
Double winch single row rope structure, low loss of wire rope;
The construction is efficient and economical;
Optional ± 90 °, 0-180 ° The grab slewing device can meet the construction requirements of narrow space in the city.

Packaging & Delivery Details

Packaging Details: Nude Packing or by Container.

Port: Tianjin/Shanghai

Quantity(Units)	1 - 1	>1
Est. Time(days)	30	To be negotiated

Technical Specifications

Specification Item	Euro Standards
Width of trench	800 - 1800mm
Depth of trench	80m
Max. pull force	700kN
Volume of grab bucker	1.1-2.1 m³
Undercarriage Model	CAT336D/self undercarriage
Engine power	261KW/266kw
Pull force of main winch (The first layer)	350kN
Extendable undercarriage (mm)	800mm
Track shoe width	3000-4300mm
System Pressure	35Mpa

Frequently Asked Questions (FAQ)

Do you have testing facilities?

Yes, our factory has all kinds of testing facilities, and we can send their pictures and test documents to you.

Will you arrange installation and training?

Yes, our professional engineers will guide on installation and commissioning at site and provide technical training as well.

Which payment terms can you accept?

Normally we can work on T/T term or L/C term, sometime DP term.

What logistics ways you can work for shipment?

We can ship construction machinery by various transportation tools. For 80% of our shipment, the machine will go by sea to all main continents either by container or RoRo/Bulk shipment. For inland neighborhood countries, we can send machines by road or railway. For urgent light spare parts, international courier services like DHL, TNT, or Fedex can be used.

What is the maximum trench depth and width of this equipment?

This hydraulic diaphragm wall equipment supports a maximum trench depth of 80 meters and a trench width ranging from 800 mm to 1800 mm.

What are the main benefits of the TG Series cable-operated grabs?

They feature outstanding strength, simplicity, and low running costs. Additionally, the rectangular or semicircular jaws with their relative guides are fully interchangeable on the actual grab body.
