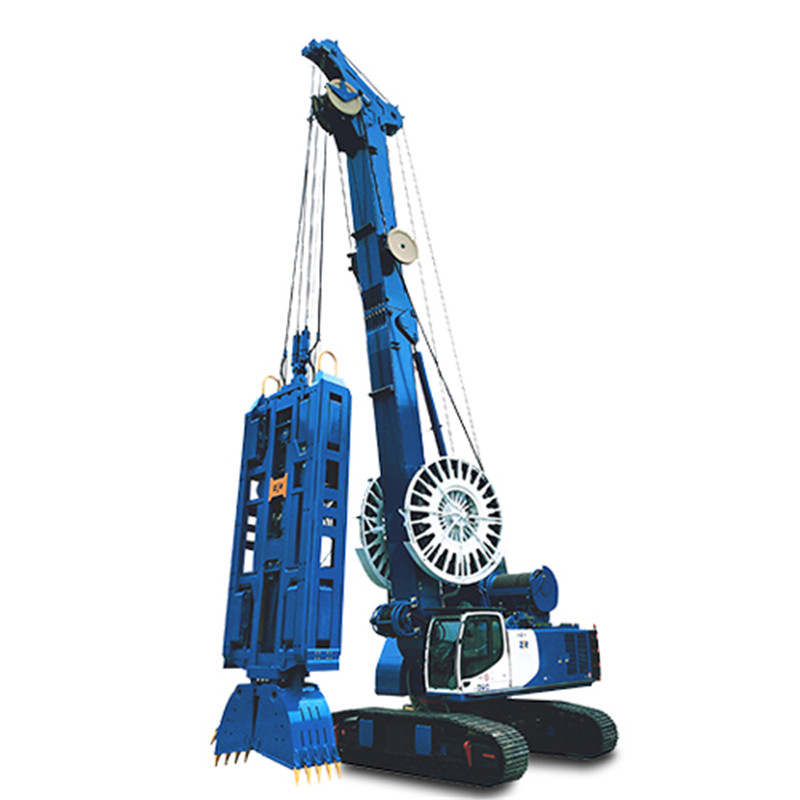

The TG60 of underground diaphragm wall hydraulic grabs can be widely used in the construction of foundation pit support , rail transit , dyke seepage prevention , dock cofferdam , underground space of urban infrastructure construction, etc.

Send Inquiry

Product Description

Technical Specifications	Parameters
Name	TG60
Groove thickness of grab bucket " open width / m	0.6-15*2.8
Groove depth / m	70
Maximum lifting force / KN	600
Single rope pulling force of winch / kw	266/1900rmp
System pressure / Mpa	35
System flow / L / min	2*380+152
Diesel engines	CUMMINS Q SMI 1
Outer track distance / mm	3450-4600
Track shoe width / mm	800
Traction / KN	700
Walking speed / km / h	2.2
Host weight / t	92
Grab weight ( without soil ) / t	15-28

Performance Features

Structural & Chassis Design

1. Multifunctional Upper Chassis: Newly designed and developed chassis is widened, with a built-in hoist. The hydraulic main valve is arranged laterally, ensuring a compact, stable structure, and convenient maintenance. Cab is moved forward with a top protective cover added. Layout is optimized horizontally for easy disassembly.

2. Self-made Telescopic Chassis: Engineered with a compact structure and designed for convenient telescopic disassembly. Features a premium slewing bearing made by Rothe Erde of Germany to ensure a long service life.

Smart Control & Engine Output

3. PLC Controller & Inclinometer: Adopts an advanced programmable PLC controller, inclinometer, and correction system to guarantee precise groove quality. Features large memory and high-resolution touch screen for real-time monitoring, display, recording, and printing of the excavation process.

4. Turbocharged Engine System: Equipped with an imported Cummins QSM 11 EFI turbocharged engine for easy maintenance. The negative feedback control main pump, hydraulic system, and engine output are reasonably matched to optimize fuel economy, work efficiency, and service life.

Winch System & Mast

5. High-Performance Winch: Features a built-in German imported reducer and brake, Rexroth motor, single-row rope, and double winch with a large diameter drum, significantly improving working efficiency and overall life cycle.

6. Mast Lifting Mechanism: The structural layout simplifies raising and lowering the mast. Joint designs are reinforced to withstand impact force during heavy excavation operations.

Multifunctional Bucket Options

7. Adjustable Weight Grab: Offers configurable weights, grab bodies, and bucket heads to match specific geological strata. Supports optional bucket body slewing devices and impact grabs. Features a 200-ton thrust cylinder to process complex formations and optimize trenching depth.

Slurry Purification System Advantages

Slurry Index Control: By fully purifying slurry, it is favorable to control slurry index, reduce drill sticking phenomena, and improve drilling quality.
Drilling Efficiency: By thoroughly separating the slag and soil, it is favorable to enhance drilling efficiency.
Cost-Effectiveness: By realizing the repetition use of slurry, it can save slurry making materials and thus reduce the construction cost.
Environmental Protection: By adopting the technique of close-cycle purification and low water content of removed slag, it is favorable to reduce environmental pollution.

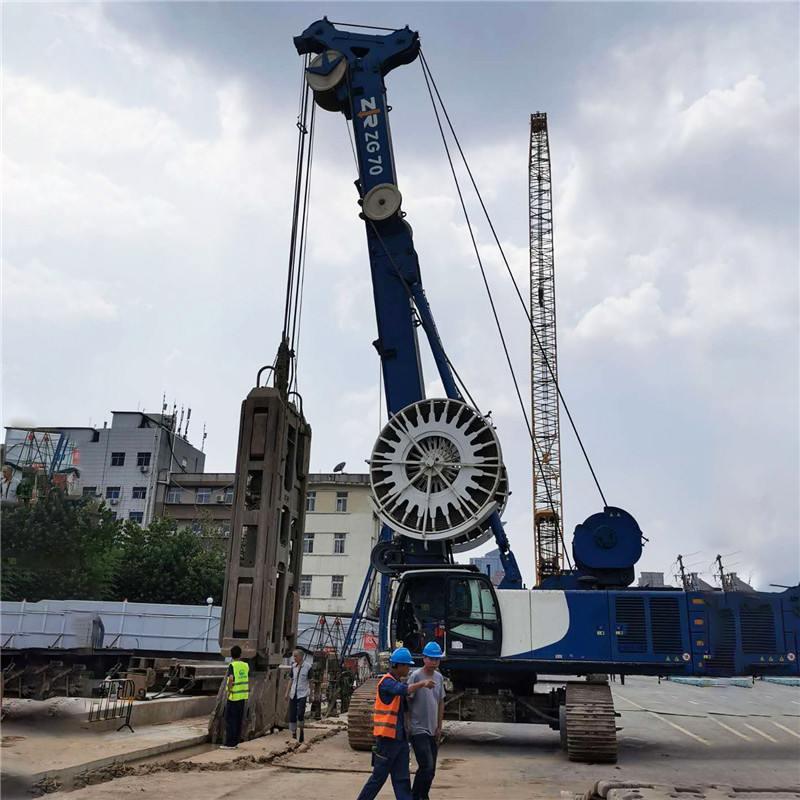

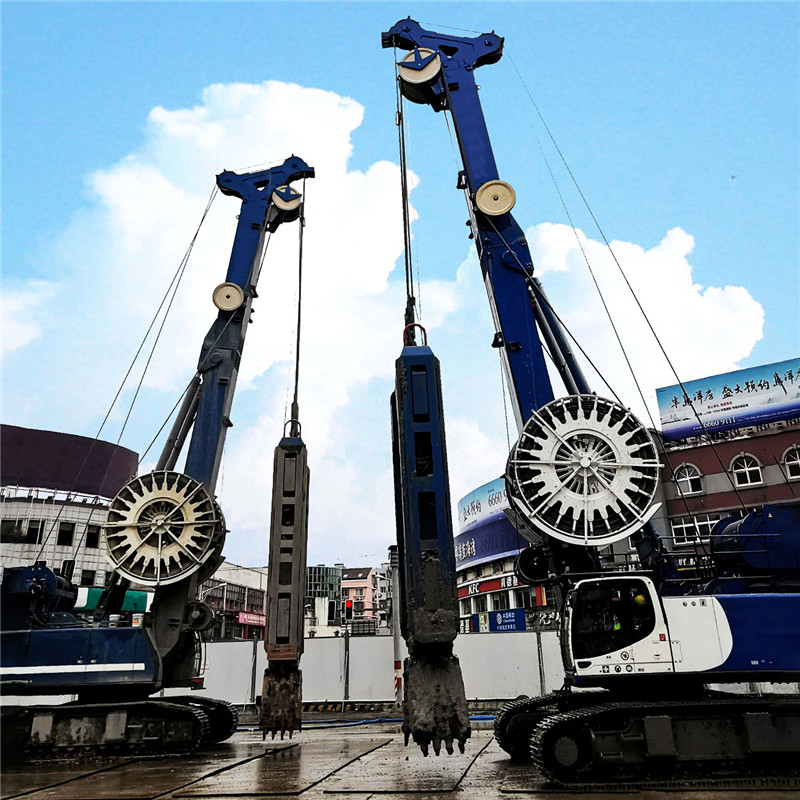

TG60 Diaphragm Wall Grab Equipment Operations

Frequently Asked Questions

What is the maximum groove depth and lifting force of the TG60?

The TG60 diaphragm wall grab features a maximum groove depth of 70 meters and a maximum lifting force of 600 KN, making it highly suitable for deep foundation trenching.

What type of engine does the TG60 use?

The TG60 is equipped with a CUMMINS QSM 11 EFI turbocharged diesel engine, which delivers high power efficiency, environmental adaptability, and excellent fuel economy.

How does the slurry purification system improve project efficiency?

The system thoroughly separates slag and soil, enabling repetition use of the slurry. This controls the slurry index to reduce drill sticking, enhances overall drilling speed, and saves raw material costs.

What are the advantages of the TG60's telescopic chassis?

The self-made telescopic chassis offers a compact structure with convenient assembly and disassembly. Additionally, it integrates a German-imported Rothe Erde slewing bearing for a long operation life.

What digital control capabilities does the TG60 feature?

It features an advanced programmable PLC controller, inclinometer, and correction system combined with a high-resolution touch screen. This allows operators to monitor, record, store, and print excavation data in real-time.

Is the TG60 suitable for complex soil formations?

Yes. The TG60 is equipped with a 200-ton thrust cylinder and a multifunctional bucket body with adjustable weight options, allowing it to easily handle complex geological formations and increase trenching depth.
