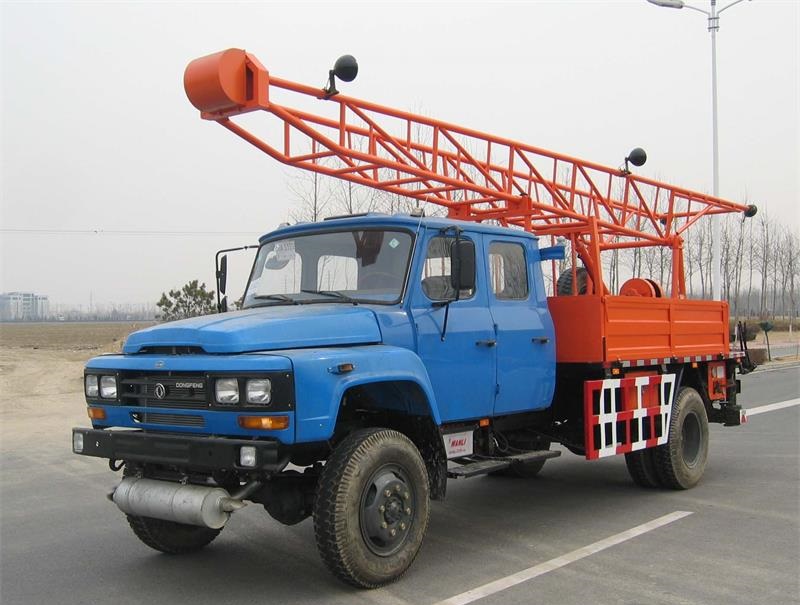

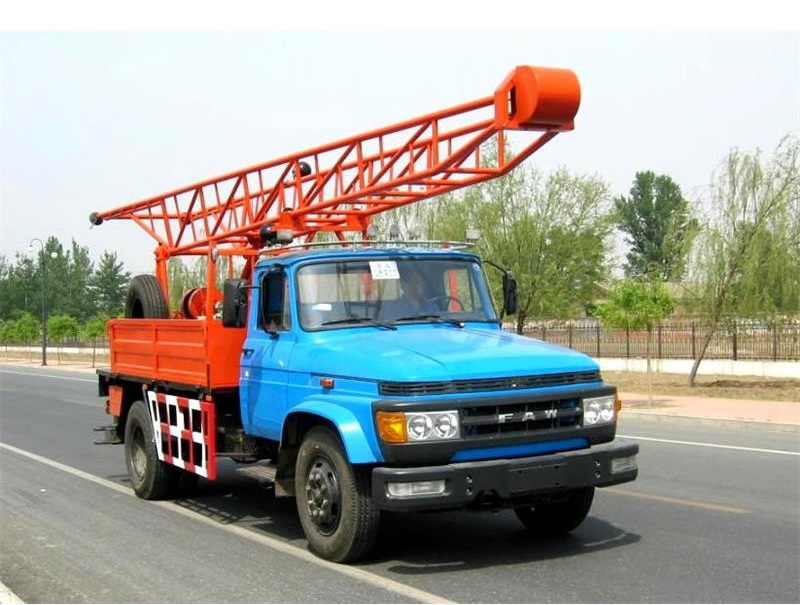

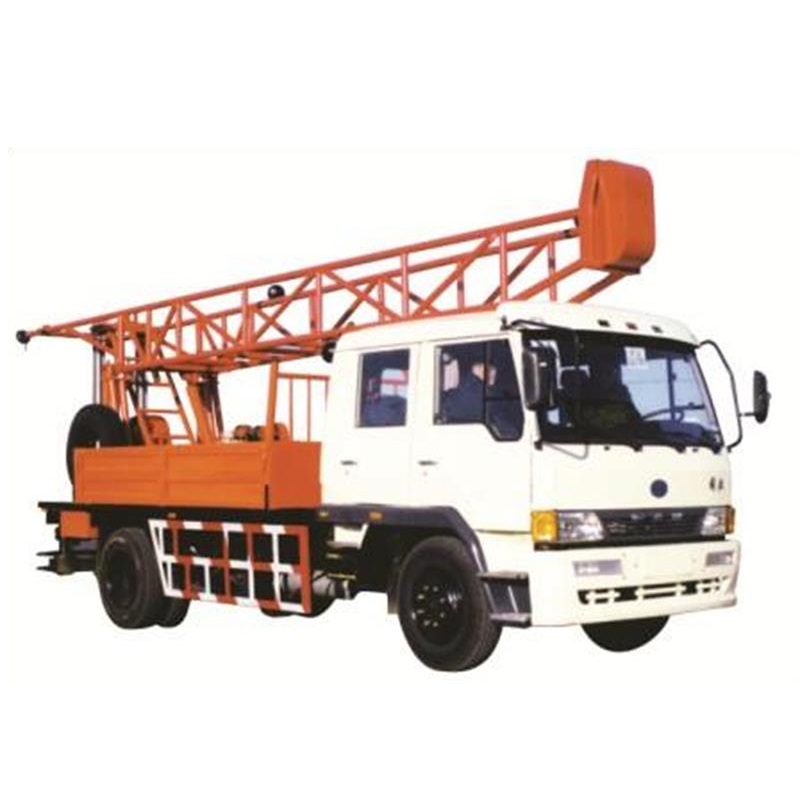

DPP100 mobile drill is one kind of rotary drilling equipment installed on the chassis of ‘Dongfeng’ diesel truck, the truck meets the china IV emission standard, the drill equipped with transpose positions and auxiliary hoisting device, drilling fed by hydraulic oil pressure.

Send Inquiry

Product Description

Applications & Scope

(1) Exploration in shallow holes of mine, and seismic exploration drilling.

(2) Drilling holes in liquids and natural gas exploitation.

(3) Drilling holes for construction blasting.

(4) Geological exploration and shallow water well drilling.

Key Product Features

(1) Having hydraulic pressure and high ability of pulling down and pulling up. The operation is easy and secure.

(2) The main hoist provided is planetary hoisting; the operations are easy, safe and reliable. The auxiliary hoisting device provides impacting operating.

(3) The mud pump is high self-adsorb ability and can be regulated 10 kind flows.

(4) Rotary table can automatic transpose position to get out off the hole; thus the labor intensity is reduced and the drill’s service life is prolonged.

(5) The driver rod has high rigidity, weightier, being pressure by self-weight.

(6) Having hydraulic mast and four stabilizers, convenient in operation.

(7) Long feeding stroke, auxiliary time reduced, drilling efficiency improved.

(8) Two cabins for six persons.

Technical Specifications

System Components		Parameters Details	Values
Fundamental Parameters	Max. drilling depth	Ф200mm	70m
	Max. drilling depth	Ф150mm	100m
	Hex Kelly bar (across flats*length)		75*5500mm
	Overall dimension		911024623800mm
	Total weight		10650kg
Rotary table	Spindle speed		65, 114, 192rpm
	Max. feeding capacity		48KN
	Max. pulling capacity		70KN
	Feeding stroke		1200mm
	Transpose stroke		450mm
Main hoisting device	Rotation speed of drum		28, 48.8, 82.3rpm
	Hoisting speed (single wire)		0.313, 0.544, 0.917m/s
	Single wire lifting capacity		12.5KN
	Diameter of the wire rope		13mm
Mud pump	Type		BWT-450
	Max. operating pressure		2MPa
	Max. displacement of water		450L/min
Hydraulic oil pump	Type		CBE 32
	Operating pressure		8MPa
	Hydraulic oil flow		35L/min
Hydraulic mast	Diameter of cylinder		100mm
Hydraulic mast	Max. operating pressure		8MPa

Frequently Asked Questions

What is the maximum drilling depth for this rig?

The maximum drilling depth is 70 meters for a Ф200mm diameter hole and 100 meters for a Ф150mm diameter hole.

What type of mud pump is integrated with this system?

This rig features a high self-adsorbing BWT-450 mud pump, which supports up to 2MPa of operating pressure and a maximum displacement rate of 450 liters per minute.

How does the planetary main hoisting system function?

The main hoisting device utilizes a planetary structure, which guarantees easy, safe, and reliable lifting operations. Additionally, the auxiliary hoisting unit supports impacting operations.

What are the dimensions and total weight of the drilling rig?

The overall transport dimensions of the unit are 9110mm x 2462mm x 3800mm, and the total weight of the system is 10,650kg.

Does the system include a hydraulic mast structure?

Yes, it is designed with a high-capacity hydraulic mast and four stabilizers that offer an easy setup, safe operation, and stable performance at a max cylinder operating pressure of 8MPa.
