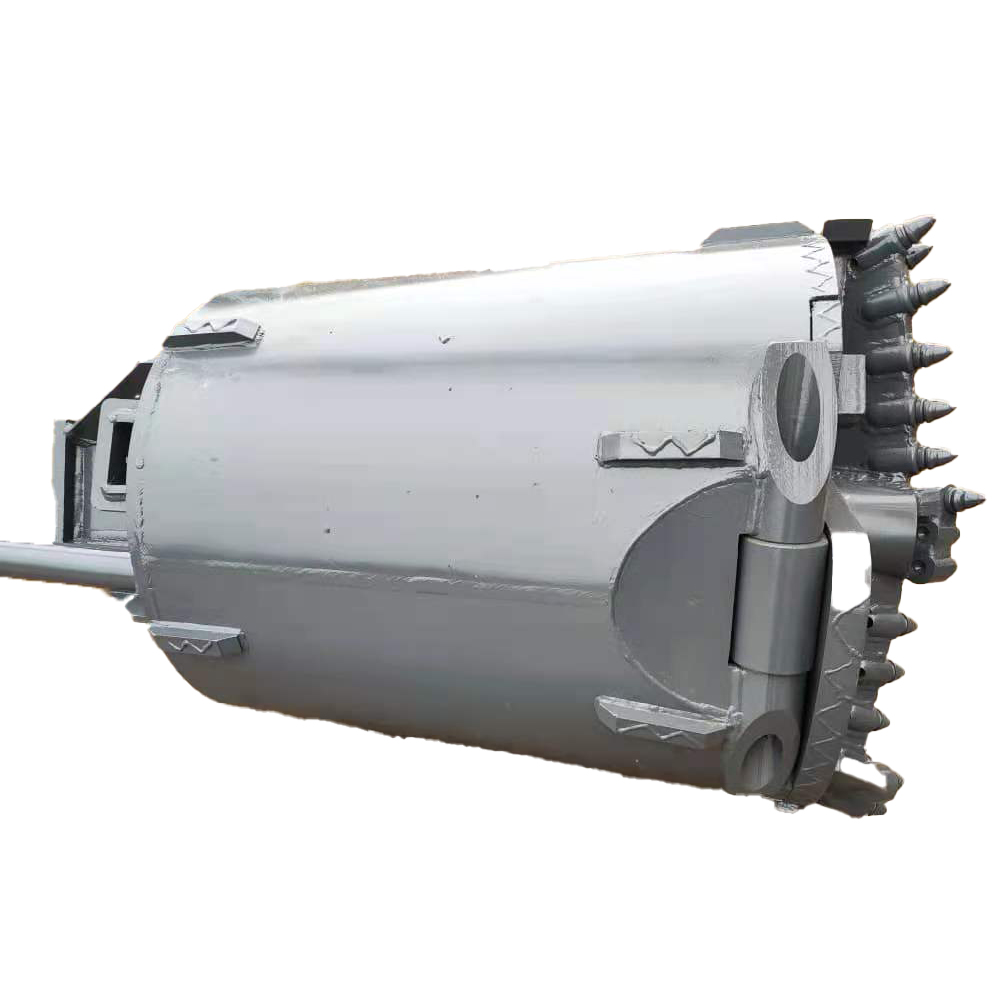

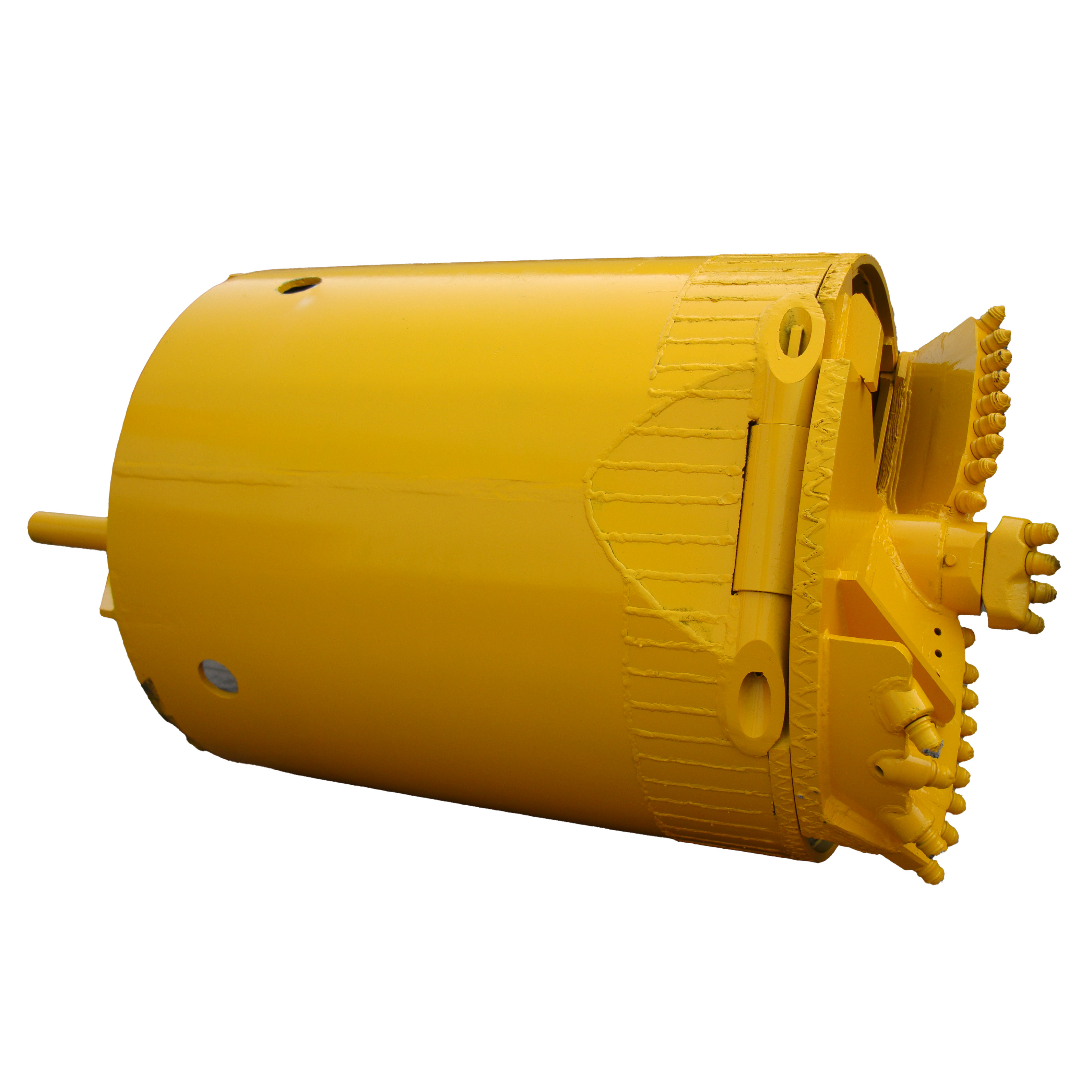

China Rock Bucket for rotary drilling rig Supplier, Factories

1 / 2

China Rock Bucket for rotary drilling rig Supplier, Factories

Send Inquiry

Product Description

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness(mm)	Base plate thickness(mm)	Cutting plate thickness(mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	40	50	11	870
φ800	Bauer	1200	16	40	50	14	1151
φ1000	Bauer	1200	16	40	50	20	1382
φ1200	Bauer	1200	16	40	50	26	1778
φ1500	Bauer	1200	16	40	50	28	2295
φ1800	Bauer	1000	16	50	50	32	3042
φ2000	Bauer	800	20	50	50	36	3850
φ2200	Bauer	800	20	50	50	38	4670
φ2500	Bauer	800	20	40(box type)	40(box type)	40	6060

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness(mm)	Base plate thickness(mm)	Cutting plate thickness(mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	40	50	11	850
φ800	Bauer	1200	16	40	50	14	1126
φ1000	Bauer	1200	16	40	50	20	1350
φ1200	Bauer	1200	16	40	50	26	1740
φ1500	Bauer	1200	16	40	50	28	2251
φ1800	Bauer	1000	16	50	50	32	3042
φ2000	Bauer	800	20	50	50	36	3850
φ2200	Bauer	800	20	50	50	38	4590
φ2500	Bauer	800	20	40(box type)	40(box type)	40	5975

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness(mm)	Base plate thickness(mm)	Cutting plate thickness(mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	40	50	11	836
φ800	Bauer	1200	16	40	50	14	1100
φ1000	Bauer	1200	16	40	50	20	1314
φ1200	Bauer	1200	16	40	50	26	1702
φ1500	Bauer	1200	16	40	50	28	2200
φ1800	Bauer	1000	16	50	50	32	2985
φ2000	Bauer	800	20	50	50	36	3780
φ2200	Bauer	800	20	50	50	38	4590
φ2500	Bauer	800	20	40(box type)	40(box type)	40	5975

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness(mm)	Cutting plate thickness(mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	50	11	790
φ800	Bauer	1200	16	50	14	950
φ1000	Bauer	1200	16	50	20	1150
φ1200	Bauer	1200	16	50	26	1490
φ1500	Bauer	1200	16	50	28	1925
φ1800	Bauer	1000	16	50	32	2505
φ2000	Bauer	800	16	50	36	2945
φ2200	Bauer	800	16	50	38	3990
φ2500	Bauer	800	20	40(box type)	40	4923

Diameter (mm)	Connection	Bucket height (mm)	Teeth quantity	Weight
φ600	Bauer	1750	6	493
φ800	Bauer	1750	9	708
φ1000	Bauer	1750	12	906
φ1200	Bauer	1750	15	1112
φ1500	Bauer	1750	21	1460
φ1800	Bauer	1750	24	2105
φ2000	Bauer	1750	27	2459
φ2200	Bauer	1750	30	2757
φ2500	Bauer	1750	36	3216

Diameter (mm)	Weight
φ800	1072
φ1000	1276
φ1200	1538
φ1500	1900
φ1800	3036
φ2000	3384
φ2200	3755
φ2500	4343

Diameter (mm)	Height (mm)	Weight
φ800	1730	978
φ1000	1730	1178
φ1200	1730	1429
φ1500	1730	1773
φ1800	1730	2621
φ2000	1730	3012
φ2200	1730	3369
φ2500	1730	3904

Any further request, please feel free to contact with us.

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness(mm)	Base plate thickness(mm)	Cutting plate thickness(mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	40	50	2	827
φ800	Bauer	1200	16	40	50	3	1112
φ1000	Bauer	1200	16	40	50	4	1335
φ1200	Bauer	1200	16	40	50	5	1725
φ1500	Bauer	1200	16	40	50	6	2300
φ1800	Bauer	1000	16	50	50	7	3080
φ2000	Bauer	800	20	50	50	8	3875
φ2200	Bauer	800	20	50	50	10	4945
φ2500	Bauer	800	20	40(box type)	40(box type)	12	6070

Frequently Asked Questions

What connection system is utilized for these drilling buckets?

These specifications are configured with standard Bauer connection joints, ensuring secure, high-torque compatibility with standard rotary drilling rigs.

What range of diameters is covered in these specifications?

The product lineup covers bucket diameters starting from φ600 mm for compact boring, up to φ2500 mm designed for large-scale foundation drilling.

How does the bucket wall thickness scale with larger diameters?

For standard models ranging from φ600 mm to φ1800 mm, the bucket wall thickness is 16 mm. Heavy-duty variants from φ2000 mm to φ2500 mm feature a wall thickness of 20 mm to withstand higher structural stress.

Why are there variations in weight and teeth quantity for the same diameter?

Different configurations (e.g., standard drilling buckets versus specialized rock or clay buckets) require specific cutting setups. Teeth quantities can range from 2 to 40, and structural elements vary, causing the total weight to differ dynamically based on the application.

What is the typical height range for these drilling buckets?

Bucket heights are optimized according to drilling depth and soil load capacity, typically ranging from 800 mm to 1200 mm for compact structures, and up to 1750 mm for extended excavation profiles.
