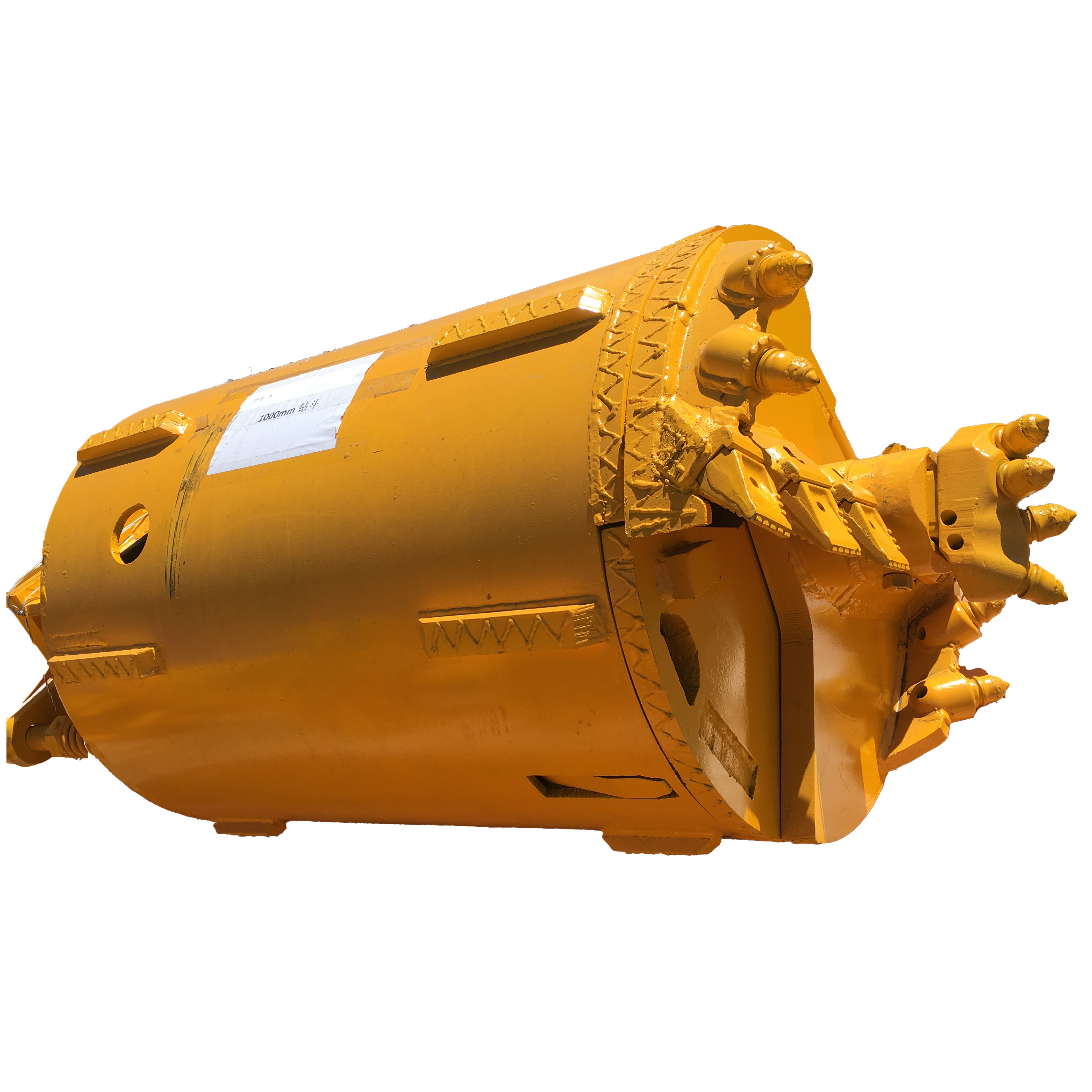

High-Quality Clay Bucket for piling Manufacturers, Products

1 / 1

High-Quality Clay Bucket for piling Manufacturers, Products

Send Inquiry

Product Description

Specification Set 1

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness (mm)	Base plate thickness (mm)	Cutting plate thickness (mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	40	50	4	846
φ800	Bauer	1200	16	40	50	6	1124
φ1000	Bauer	1200	16	40	50	8	1344
φ1200	Bauer	1200	16	40	50	10	1726
φ1500	Bauer	1200	16	40	50	12	2252
φ1800	Bauer	1000	16	50	50	15	3056
φ2000	Bauer	800	20	50	50	18	3871
φ2200	Bauer	800	20	50	50	20	4700
φ2500	Bauer	800	20	40(box type)	40(box type)	23	6112

Specification Set 2

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness (mm)	Base plate thickness (mm)	Cutting plate thickness (mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	40	50	6	825
φ800	Bauer	1200	16	40	50	8	1095
φ1000	Bauer	1200	16	40	50	10	1302
φ1200	Bauer	1200	16	40	50	12	1668
φ1500	Bauer	1200	16	40	50	15	2175
φ1800	Bauer	1000	16	50	50	18	2900
φ2000	Bauer	800	20	50	50	20	3680
φ2200	Bauer	800	20	50	50	22	4490
φ2500	Bauer	800	20	40(box type)	40(box type)	25	5870

Specification Set 3

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness (mm)	Cutting plate thickness (mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	50	2	747
φ800	Bauer	1200	16	50	4	995
φ1000	Bauer	1200	16	50	6	1180
φ1200	Bauer	1200	16	50	7	1535
φ1500	Bauer	1200	16	50	9	2027
φ1800	Bauer	1000	16	50	12	2796
φ2000	Bauer	800	20	50	12	3560
φ2200	Bauer	800	20	50	14	4360
φ2500	Bauer	800	20	40(box type)	16	5730

Specification Set 4

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness (mm)	Base plate thickness (mm)	Cutting plate thickness (mm)	Weight
φ600	Bauer	1200	16	40	50	719
φ800	Bauer	1200	16	40	50	984
φ1000	Bauer	1200	16	40	50	1189
φ1200	Bauer	1200	16	40	50	1557
φ1500	Bauer	1200	16	40	50	2103
φ1800	Bauer	1000	16	50	50	2856
φ2000	Bauer	800	20	50	50	3618
φ2200	Bauer	800	20	50	50	4661
φ2500	Bauer	800	20	40(box type)	40(box type)	5749

Specification Set 5

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness (mm)	Cutting plate thickness (mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	50	2	700
φ800	Bauer	1200	16	50	4	895
φ1000	Bauer	1200	16	50	6	1087
φ1200	Bauer	1200	16	50	7	1403
φ1500	Bauer	1200	16	50	9	1855
φ1800	Bauer	1000	16	50	12	2385
φ2000	Bauer	800	20	50	12	2800
φ2200	Bauer	800	20	50	14	2840
φ2500	Bauer	800	20	50	16	4770

Specification Set 6

Diameter (mm)	Connection	Bucket height (mm)	Bucket wall thickness (mm)	Base plate thickness (mm)	Teeth quantity	Weight
φ600	Bauer	1200	16	30	2	580
φ800	Bauer	1200	16	30	4	882
φ1000	Bauer	1200	16	30	6	1040
φ1200	Bauer	1200	16	30	7	1187
φ1500	Bauer	1200	16	30	9	1275

Drill Specification Details

Drill Specification	Connection	Straight Tube Diameter	Gear Diameter	Teeth Quantity	Weight
BS600	Bauer	520	600	4	819
BS800	Bauer	680	800	6	1165.5
BS1000	Bauer	860	1000	8	1480.5
BS1200	Bauer	1060	1200	10	2047.5
BS1500	Bauer	1360	15000	12	2866.5

Frequently Asked Questions

What type of connections do these drilling buckets support?

All drilling buckets listed in our specifications are designed to support industry-standard Bauer connections, ensuring robust compatibility and high transmission of torque.

What range of diameters is available for these drilling tools?

The standard diameters of our drilling buckets range from φ600 mm up to φ2500 mm, covering a wide range of geotechnical construction and piling application requirements.

How does the wall and plate thickness change with the bucket diameter?

To withstand high stress in larger boreholes, bucket wall thicknesses range from 16 mm to 20 mm, while the base and cutting plates range from 30 mm to 50 mm, including reinforced box-type plates for the φ2500 mm model.

How is the teeth quantity determined for each model?

Teeth quantity scales directly with the bucket size and specification type, starting from 2 teeth on smaller φ600 mm models and scaling up to 25 teeth on φ2500 mm heavy-duty variations.

What is the weight span of these drilling tools?

The weight starts from approximately 580 kg for the light-duty φ600 mm bucket and reaches up to 6112 kg for the heavy-duty φ2500 mm bucket configurations.

What are the dimensions for the BS series drill specifications?

The BS series ranges from BS600 to BS1500, with straight tube diameters between 520 mm and 1360 mm, matching gear diameters between 600 mm and 15000 mm, and weight ranges from 819 kg up to 2866.5 kg.
